For the first time, a software load balancer exceeds 2-million RPS on a single Arm instance.


A few weeks ago, while I was working on an HAProxy issue related to thread locking contention, I found myself running some tests on a server with an 8-core, 16-thread Intel Xeon W2145 processor that we have in our lab. Although my intention wasn’t to benchmark the proxy, I observed HAProxy reach 1.03 million HTTP requests per second. I suddenly recalled all the times that I’d told people around me, “The day we cross the million-requests-per-second barrier, I’ll write about it.” So, I have to stand by my promise!

I wanted to see how that would scale on more cores. I had got access to some of the new Arm-based AWS Graviton2 instances which provide up to 64 cores. To give you an idea of their design, each core uses its own L2 cache and there’s a single L3 cache shared by all cores. You can see this yourself if you run lscpu on one of these machines, which will show the number of cores and how caches are shared:

I had been extremely impressed by them, especially when we were encouraged by @AGSaidi to switch to the new Arm Large System Extensions (LSE) atomic instructions, for which we already had some code available but never tested on such a large scale, and which had totally unlocked the true power of these machines. So that looked like a fantastic opportunity to combine everything and push our benchmarks of HAProxy to the next level! If you are compiling HAProxy with gcc 9.3.0, include the flag -march=armv8.1-a to enable LSE atomic instructions. With gcc version 10.2.0, LSE is enabled by default.


Yes, you’ve read the title of this blog post right. HAProxy version 2.3, when tested on Arm-based AWS Graviton2 instances, reaches 2.04-million requests per second!

HAProxy 2.4, which is still under development, surpasses this, reaching between 2.07 and 2.08 million requests per second.

Graphs shows HAProxy reaches between 2.07 and 2.08 million requests per second

If you’re curious about the methodology of the tests, the ways in which the systems were tuned, and the lessons learned, read on.

A new project called dpbench has been launched in collaboration with a few members of the NGINX team, which captures some of the best practices for benchmarking proxies. It offers guidance to anyone wanting to run similar experiments without falling prey to some common misconceptions. Note that the project welcomes contributors who could provide more tuning/reporting scripts, configs for various environments, results and tips.


In these benchmarks, we’re testing two things:

  • HTTP requests per second
  • End-to-end request latency at and above the 99.99th percentile

Tail latencies—which are latencies that affect a small number of requests—are something extremely important to not overlook, especially in service meshes where one request from the user can result in many microservice requests on the backend. In these environments, a latency spike creates an amplification factor.

For example, if a user’s request translates to 20 backend requests, a bigger latency affecting only 1 in 10,000 of the backend requests will affect 1 in 500 of the user’s requests. If that user makes 50 requests during a visit, it’s even more likely to manifest. If the increase in latency is low, or if it’s extremely rare, then the problem isn’t dramatic, but when it’s both high and frequent it’s a concern. So, it’s important that we measure this during the benchmarks.

Instance size

We used AWS’s c6gn.16xlarge virtual machine instances, which are 64-core machines from the c6gn series with access to 100 Gbps of network bandwidth. They’re compute-optimized using Graviton2 processors and are built for applications that require high network bandwidth. This instance size is used for the client, proxy, and server.

I first started with a 16-core, then a 32-core, instance thinking this could have been enough. A direct test from the client to the server, without HAProxy in between, disappointed me a bit with only 800k packets-per-second, or a bit less than the regular c6g one. I then decided to go for the full one: 64 cores on a dedicated host. This time I got my 4.15 million packets per second and thought that it would be sufficient, since I really only needed 2 million to achieve 1 million requests per second, accounting for one packet for the request and one for the response.

All machines were installed with Ubuntu 20.04, which is among the installations proposed by default.

IRQ affinity

It took me a while to figure how to completely stabilize the platform because while virtualized, there are still 32 interrupts (aka IRQs) assigned to the network queues, delivered to 32 cores! This could possibly explain the lower performance with a lower number of cores. 32 queues can sound like a lot to some readers, but we’re speaking about 100 Gbps networking here and millions of packets per second. At such packet rates, you definitely do not want any userland process to hit one of these cores during the middle of your test, and this is what was happening since these cores were more or less randomly assigned to processes.

Moving the interrupts to the 32 upper cores left the 32 lower ones unused and simplified the setup a lot. However, I wondered if the network stack would support running on only 16 cores with 2 interrupts per core, which would leave 48 cores for HAProxy and the rest of the system. I tried it and found it to be the optimal situation: the network saturates at around 4.15 million packets per second in each direction and the network-dedicated cores regularly appear at 100%, indicating interrupts are being forced to queue up (ksoftirqd).

At this level, whenever something happens on the system—for example, the snapd daemon was waking up every 60 seconds, crond was checking its files every 60 seconds—it has to share one core with either the network or HAProxy, which causes quite visible latency spikes of one millisecond or more. I preferred to stop these services to limit the risk of random stuff happening in the background during the tests:

This definitely is a good example of parasitic activities, justifying leaving a few cores available for remaining activities. Thus, I figured that I’d leave 2 cores available and bind every non-load related activity there.

In short, the test was run with the network interrupts bound to cores 48-63 on all machines (total 16 cores), HAProxy/client/server enabled on cores 2-47 (total 46 cores), and cores 0-1 left available for everything else (sshd and monitoring tools).

The IRQs are bound to the 16 upper cores with this command using the tool from the dpbench project mentioned before:

Network topology

The whole setup was kept fairly simple and looks like this:

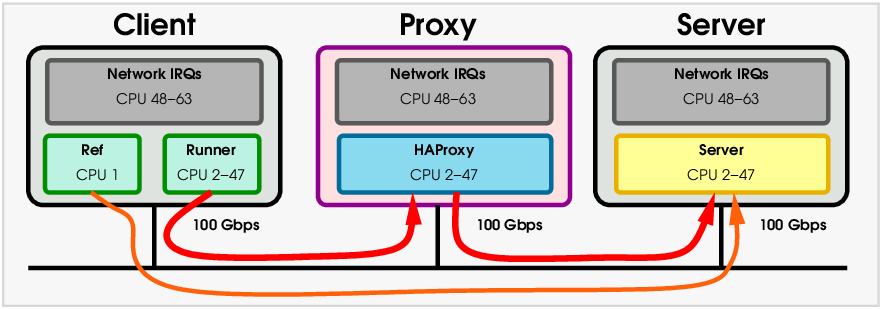

The benchmark lab used a client, proxy and server

The server software was httpterm, started on 46 cores. The ulimit command increases the number of open file descriptors (i.e. slots for connections) available:

HAProxy is version 2.3:

Its configuration file, test.cfg, is based on the dpbench project’s basic forwarder example:

We run it with the following commands:

The client software, shown as Runner in the diagram, was h1load with 46 threads, which provides live stats that allow you to validate that everything went as expected. The number of concurrent connections was set to 1150 because this is an integral multiple of 46, which matches the number of threads/processes along the chain. The HTTP response for these tests was configured to be a zero-byte body. This can be configured by changing the URL to specify the size of response required by passing /?s=<size>.

A second client acted as the control for the experiment. Shown as Ref in the diagram, it ran on the same client machine on a dedicated core at a very low load of 1000 requests per second. Its purpose is to measure the direct communication between the client and the server, measuring the impact of the load on the network stacks all along the chain, to more accurately measure the cost of the load balancer’s traversal. It will not measure the part experienced by the client software itself, but it already fixes a bottom value.

The tests were run for two minutes with a 30 second ramp-up. The ramp-up is not important for pure performance, but is mandatory when collecting timing information because the operating systems on all machines take a lot of time to grow the structures used by the file descriptors and sockets. It’s easy to see extremely long latencies on the client due to its own work. The ramp-up approach smooths this out and reduces the number of bad measurements on the client. Using stairs allows you to detect some unexpected boundaries too—typically a forgotten file-descriptor limitation (i.e. you forgot to run ulimit) that would cause sudden increases.

CPU usage and network traffic were collected as well on each machine, as documented in the dpbench project.


The results graphed below show curves that look quite clean and very stable, despite measurements being taken every second. With IRQs bound and the daemons above stopped on all the machines, almost all tests look as clean as this one.

HAProxy 2.3

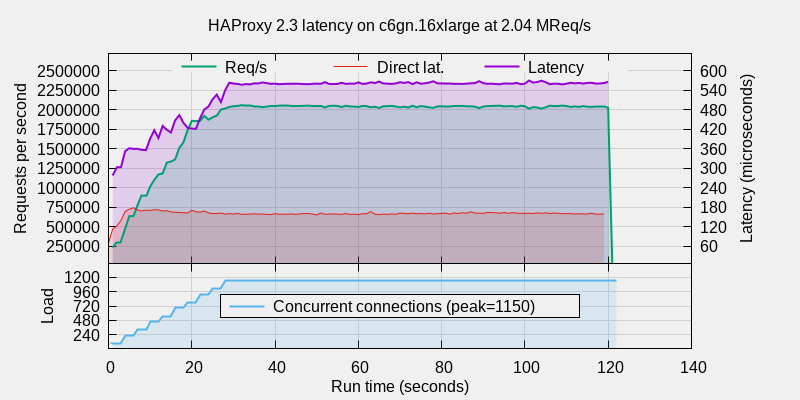

Performance is almost flat at 2.04 to 2.05 million requests per second. The direct communication from the client to the server shows 160 microseconds response time while adding HAProxy increases it to 560. So, the insertion of the load balancer, and the effect of adding an extra network hop, adds at most 400 microseconds on average—less than half a millisecond.

Graph shows HAProxy reaches almost 2.05 million requests per second

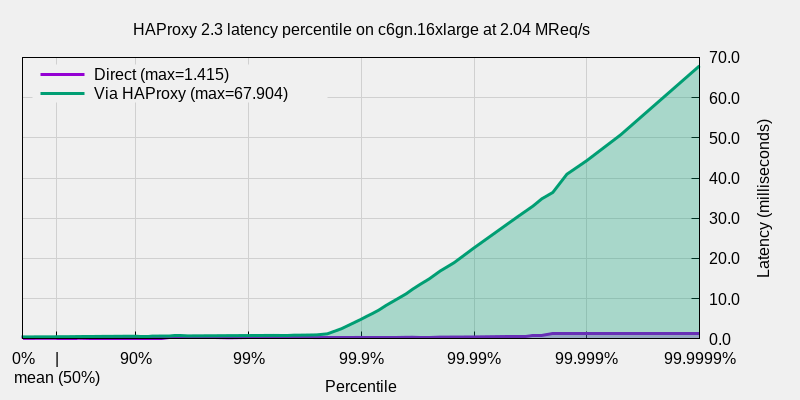

The percentile graph shows that the latency at 99.9% is at 5ms, indicating that 1 in 1,000 of the requests take more than 5ms. However, it continues to grow and reaches 68ms for 1 request per million. The fact is that the machine is totally saturated and due to this we’re measuring the effect of queuing at every stage in the chain (network buffers and HAProxy).

graph shows that the latency at 99.9% is at 5ms

HAProxy 2.4

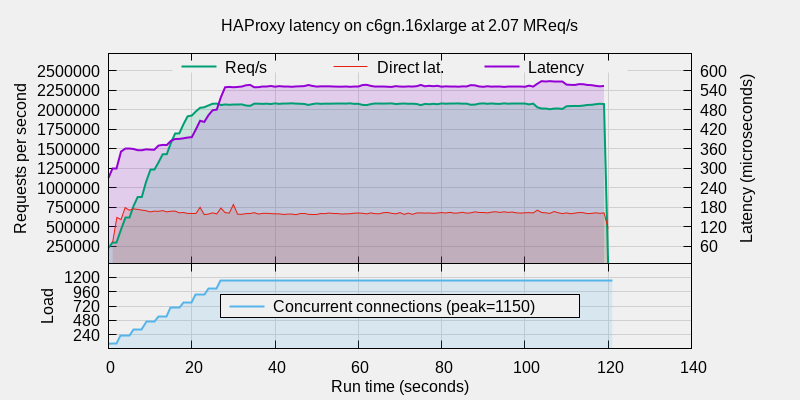

These results are for HAProxy version 2.3. The 2.4 development branch has received a lot of improvements over time and running the same tests on it gave even better results. HAProxy 2.4 oscillates between 2.07 and 2.08 million requests per second. The direct communication from the client to the server shows 163 microseconds response time while adding HAProxy, and the extra network hop, increases it to 552. Therefore, it adds up to 389 microseconds on average, or slightly more than the third of a millisecond.

Graph shows that HAProxy 2.4 reaches between 2.07 and 2.08 million requests per second

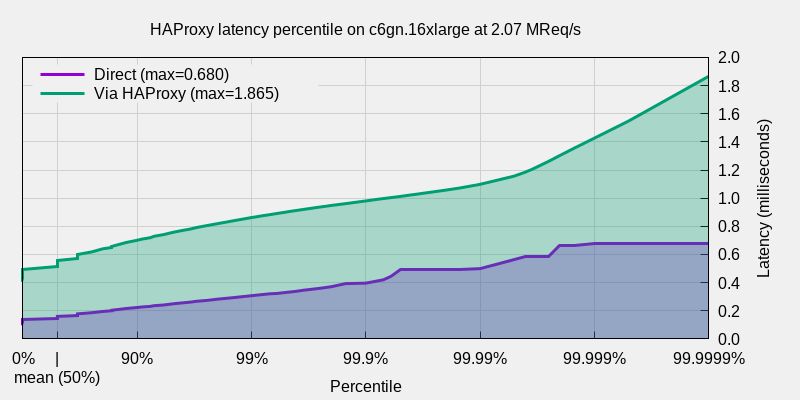

The maximum latency here reaches 1.87 milliseconds, out of which 0.68 are already experienced in the direct communication. So, HAProxy never adds more than 1.19 milliseconds.

Graph shows that HAProxy 2.4 has a maximum latency of 1.87 milliseconds

What is visible on the CPU usage report shown below is that HAProxy is not saturated any more. It uses on average 42 of the 46 allocated CPUs. However, the network layer is visible under it and the ksoftirq threads regularly pop at 100% CPU.

This is an ideal combination of resources, with HAProxy having exactly what it needs and the network stack having exactly what it needs as well. It’s not possible to go beyond this because we’ve reached the limit of 4.15 million packets per second in both directions that we previously measured as the hard limit on the network interface.

TLS for free

Some readers are probably wondering if we couldn’t use these spare CPU cycles in HAProxy to do a bit of TLS termination for free. Let’s try it.

Results show that we’re just between 1.99 and 2.01 million requests per second over TLS. The average response time is 575 microseconds for 162 direct, so HAProxy over TLS adds at most 413 microseconds to the chain. For these tests I used an RSA 2048-bit certificate and the connections were made over TLSv1.3 with TLS_AES_256_GCM_SHA384.

Graph shows that HAProxy with TLS adds at most 413 microseconds to the chain

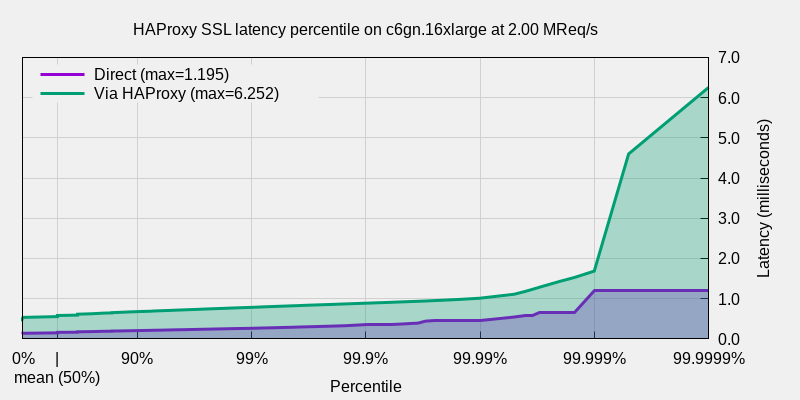

The latency percentiles shows that less than 1 request in 100,000 is above 1.6 milliseconds and that they never exceed 6.25 milliseconds, for 1.2 max direct. HAProxy never adds more than 5 milliseconds when terminating TLS.

Graph of TLS shows that less than 1 request in 100,000 is above 1.6 milliseconds

Now we’ve saturated the CPUs:


Why assign so many cores if the network is the limitation? Just to show that it’s possible. Also, some users might want to run heavy processing in HAProxy with lots of rules, multi-threaded Lua modules (2.4 only), or heavy TLS traffic. In addition, figuring out how many cores are needed for the network part to handle a given load is extremely useful, because once these cores are considered “reserved”, it is easier to assign the remaining ones to various tasks (which was done for the load generators by the way).

But, quite frankly, nobody needs such insane performance levels on a single machine. It’s possible to downscale this setup considerably to very inexpensive machines and still get excellent response times.

For much lower loads, such as 100 concurrent connections—while still high for many users—even a free t4g.micro instance, which comes with 2 vCPUs and 1 GB of RAM, reaches 102,000 requests per second for non-TLS traffic and 75,000 for requests for TLS. Although, this modest machine instance drops to about 56,000 non-TLS and 45,000 TLS at 1,000 concurrent connections.

However, the 2 vCPUs need to be shared between HAProxy, the network stack, and the tools, which causes visible latency spikes at 99.9999% above 25,000 TLS requests per second. But we’re talking about a free instance and high loads already! For even lower loads it is also possible to install HAProxy for free on any existing machine you have without even noticing its presence!


With the Arm-based AWS Graviton2 instances, it’s possible to have both computational and network performance. The Graviton2 machines are absolutely awesome with their 64 true cores and their impressive scalability. Their support of the LSE atomic instructions has totally solved the scalability issues that were plaguing the pre-armv8.1-a CPUs. I don’t understand why we’re still not seeing boards with such CPUs. They’re fantastic for developers, they provide a totally uniform memory access to all 64 cores, and they’ve already helped us leverage some contention points on HAProxy 2.4. Even just a scaled-down one with 16 cores and lower frequency would be great… Please 🙂

It is also clearly visible that there’s still a little bit of headroom, but that we’ve hit the 4-million packets-per-second limit of the current virtualization layer. However, reaching 100 Gbps is trivial there. I could verify that HAProxy reaches 92 Gbps of HTTP payload bandwidth with requests as small as 30 kB! I’m really wondering what such machines could do on bare metal, but most likely we’re observing one of the most inexpensive bit-movers nowadays! I wouldn’t be surprised if Amazon was already using this hardware for their own infrastructure.

On the HAProxy front, the current 2.4 development branch received a lot of scalability optimizations recently that managed to further reduce the peak latencies and increase the fairness between requests. We went as far as measuring both the per-function CPU time and per-function latency at runtime to spot offenders and focus our efforts on certain areas in the code. The Runtime API command show profiling displays these metrics for us:

That command is part of the long-term instrumentation effort that allows developers to continuously verify that they’re not degrading anything in the codebase. It’s also very useful to understand what could be a likely cause of suboptimal processing in the field. The “perf” tool was used a lot on these machines, and a few small contention points were identified which, once addressed, could allow us to gain a few more percentage points.

We are approaching an era where not only can you get the world’s fastest load balancer for free, but, with the ability to run it on cheap machine instances and still get amazing results, its operating cost is pushed to nearly zero too.
