HashiCorp added a service mesh feature to Consul, its service-discovery and distributed storage tool. In this post, you’ll see how HAProxy is the perfect fit as a data plane for this architecture.

HAProxy is no stranger to the service mesh scene. Its high performance, low resource usage, and flexible design allows it to be embedded within various types of service-oriented architectures. For example, when Airbnb needed to scale its infrastructure to support a growing number of distributed services, it developed SmartStack. SmartStack is a service mesh solution that relies on instances of HAProxy relaying communication between services. Using HAProxy allowed SmartStack to take advantage of advanced load-balancing algorithms, traffic queuing, connection retries, and built-in health checking.

HAProxy Technologies is working with HashiCorp to bring you a Consul service mesh that utilizes HAProxy as a data plane. This will allow you to deploy the world’s fastest and most widely used software load balancer as a sidecar proxy, enabling secure and reliable communication between all of your services.

In Consul 1.2, HashiCorp released Connect, which is a feature that allows you to turn an existing Consul cluster into a service mesh. If you’re familiar with Consul, you’ll know it for its distributed key/value storage and dynamic service discovery. With the addition of Connect, you can register sidecar proxies that are colocated with each of your services and relay traffic between them, creating a service mesh architecture. Best of all, it’s a pluggable framework that allows you to choose the underlying proxy layer to pair with it.

With Connect, HAProxy can be combined with the Consul service mesh too. This provides you with many advantages when designing your architecture. First, let’s take a step back and cover what a service mesh is and why it benefits you to use one.

Why Use a Service Mesh?

Why would you use a service mesh anyway? It comes down to the challenges of operating distributed systems. When your backend services are distributed across servers, departments, and data centers, executing the steps of a business processes often involves plenty of network communication. However, if you’ve ever had the responsibility of managing such a network, L. Peter Deutsch’s Fallacies of Distributed Computing will ring true. The fallacies are:

  • The network is reliable.
  • Latency is zero.
  • Bandwidth is infinite.
  • The network is secure.
  • Topology doesn’t change.
  • There is one administrator.
  • Transport cost is zero.
  • The network is homogeneous.

Obviously, the network is not always reliable. Topology does change. The network is not secure by default. How can you manage these risks? Ultimately, you want to apply mechanisms that addresses these issues without adding tons of complexity into every service that you own. In essence, each application shouldn’t need to be aware that a network exists at all.

That is why service meshes are becoming so popular. They abstract away the network from the application code. A service mesh is a design pattern where, instead of having services communicate directly to one another or directly to a message bus, requests are first passed to intermediary proxies that relay messages from one service to another.

The benefit is that the proxies can support functions for dealing with an unruly network that all services need, but which are more easily handled outside of the services themselves. For example, a proxy could retry a connection if it fails the first time and secure the communication with TLS encryption. You end up separating network functionality from application functionality.

The network-related problems that we mentioned before are mitigated by capabilities within HAProxy. For example, the solutions include:

  • The network is not reliable = Retry logic for connecting to services
  • Bandwidth is not infinite = Rate limiting to prioritize certain traffic or prevent overuse
  • Topology changes = Consistent endpoints, such as always communicating with localhost, service discovery, and DNS resolution at run time
  • The network is not secure = Truly end-to-end encryption with mutual TLS authentication
  • There is never just one administrator = Authorizing which services are allowed to connect to which other services
  • Transport cost is not zero = Observability of service traffic

Let’s see how the pieces fit together.

Control Plane and Data Plane

How does Consul relate to HAProxy? What are the responsibilities of each? Think of the whole thing like a real-time strategy video game. One of my favorites is Starcraft. In this game, you, the player, control an army of workers whose sole mission in life is to await their marching orders from you and then execute them. For example, you could tell them to go mine for minerals or explore a new area of the map and they’ll happily go off and do what’s been asked of them.

Compared to a service mesh, you, the player, represent Consul. Consul gives the marching orders to all of the proxies under its influence. It provides each one with the configuration details it needs: information about where other services can be found, which port to listen on for incoming requests, which TLS certificate to use for encryption, and which upstream services the local service depends on. In service mesh terminology, Consul is the control plane.

HAProxy, the Advanced Proxy

The proxies take on a more drone-like approach to life. You don’t need to configure each instance of HAProxy individually. They are responsible for querying the central Consul registry to get their configuration information on their own. This proxy layer is called the data plane. Of course, they are just as important as your video game workers. The proxy technology that you choose determines the capabilities your service mesh will have. Will it be able to encrypt communication? Will it have logic for reconnecting to a service if the first attempt fails?

HAProxy gives you features that a distributed architecture requires. It is the product of the hard-working open-source community and has become known as the fastest and most widely used software load balancer in the world. You get TLS encryption, connection retry logic, server persistence, rate limiting, authorization between services, and observability all out-of-the-box and in a lightweight process.

The Components

The key pieces of your service mesh will include the following:

  • Your service
  • A Consul agent, running locally, that your service registers with
  • The proxy, which is registered as a sidecar
  • A quorum of Consul agents that are in server mode, responsible for managing the service registry and configuration information

Let’s cover these components in more detail.

Your Service (aka your business logic)

Your service is at the heart of the design. It exposes functionality over a TCP port and, optionally, relies on other distributed services. The goal is to minimize the ways in which you need to change it in order to fit into the service mesh. Ideally, it should continue on as it always has, oblivious to the topology of the outside network. Consul gives you this separation of concerns.

Like in our video game analogy, let’s say that we’re talking about a service that mines for minerals. However, maybe it needs to talk to the map service to find out where to start working. Ordinarily, you would need to configure it with a known address or DNS name of the map service. If these settings ever changed, your mining service’s configuration also had to change to point to the new endpoint.

With Consul, service discovery allows you to query a central registry to find out where services live. However, with Connect, it gets even better. A local instance of HAProxy is created next to the service so that it’s listening on localhost. Then, your service always queries it as if it were the remote map service. This is known as a sidecar proxy: Each service gets its own local proxy and, through the relaying of messages, can reach other remote services as if they too were local. Now, you can point your local service’s configuration at localhost and never need to change that endpoint again.

Consul Agent

Also local to your service is a Consul agent. An agent is the Consul executable running in regular agent mode, as opposed to server mode. You register the local service with this agent by adding a JSON file to the /etc/consul.d folder. This gets synced to the server-mode agents.

Think of it like a walkie-talkie to the agents that are running in server mode, which hold the source of truth. The registration gets sent up and saved to the global registry. Then, when HAProxy wants to discover where it can find services on the network, it asks its local Consul agent and that agent pulls the information back down. Afterwards, it gives the answer to your proxy.

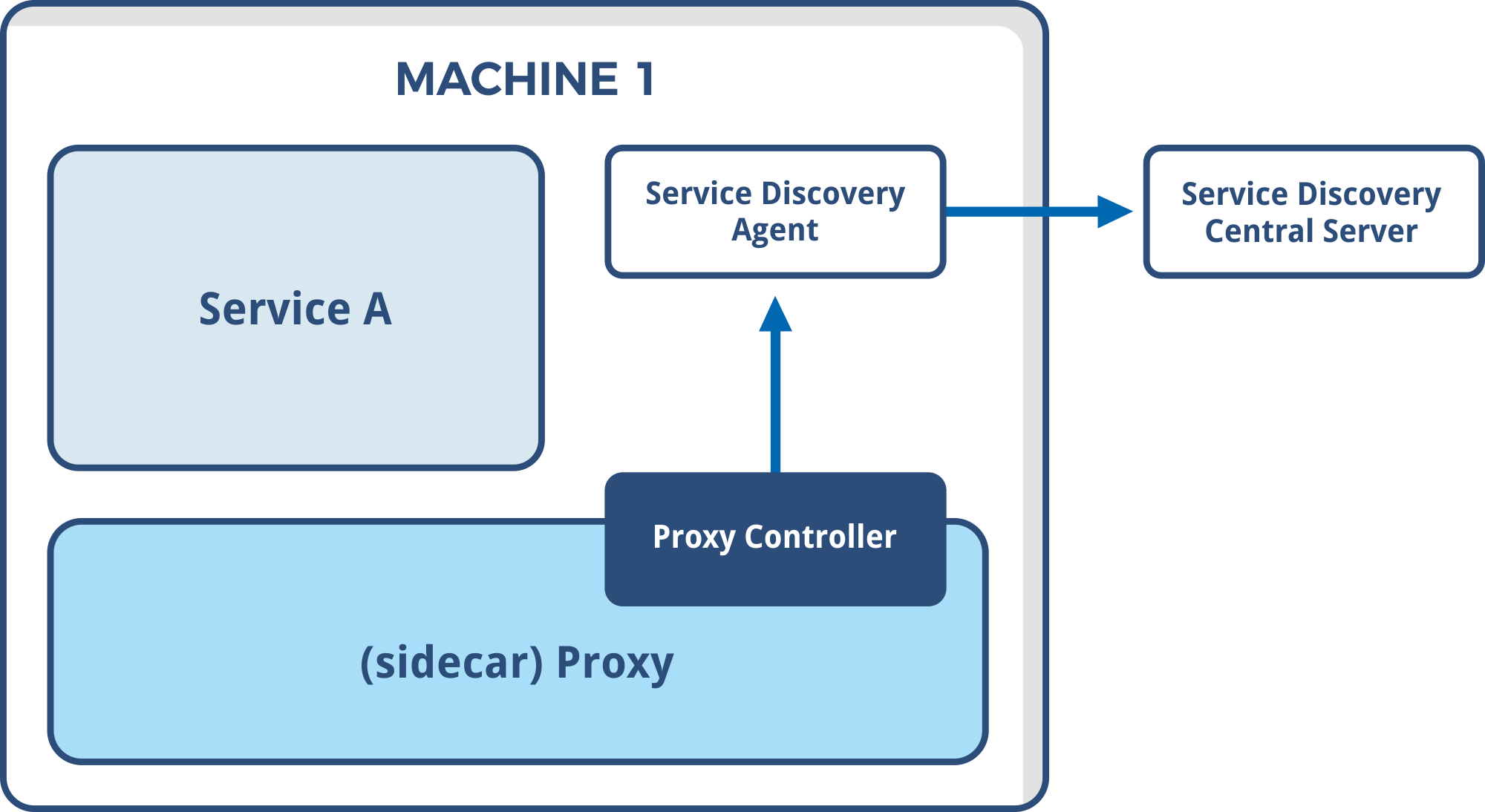

haproxy consul agent

A locally run Consul agent is one of the key components of the service mesh

The same goes for the upstream services you’re calling. They each get their own local Consul agent. They register with it so that others can find them and they also tell Consul about any services that they, in turn, depend on. All of this information is used to configure the proxies so that in the end, all services talk to localhost and all communication becomes proxy-to-proxy.

The HAProxy Sidecar

Next to each service and Consul agent is a sidecar proxy, which is an instance of HAProxy. You don’t configure it directly. Instead, you install it with a specialized handler that queries the Consul agent to know which upstream services your local service depends on. Then, HAProxy sets up listeners on localhost so that your application can talk to the remote endpoints that it needs to, but without needing to know exactly where those endpoints live. In essence, you’re abstracting away the network.

A benefit to routing traffic through a local proxy is that the proxy can enforce fine-grained authorization rules. Consul lets you define intentions, which are rules that govern whether one service can talk to another. At runtime, HAProxy queries the local Consul agent to check if an incoming connection is allowed.

To review, your service registers with its local Consul agent information about itself and the upstream services on which it depends. That agent sends that information up to the Consul servers, which maintain the central registry. The local instance of HAProxy then asks the local Consul agent for configuration information and the agent pulls back the data that the Consul servers have compiled.

HAProxy then configures itself, listening for incoming requests to the local service and also for outgoing requests that the service makes to other services. The HAProxy handler continues to check for changes to service registrations and updates itself when needed.

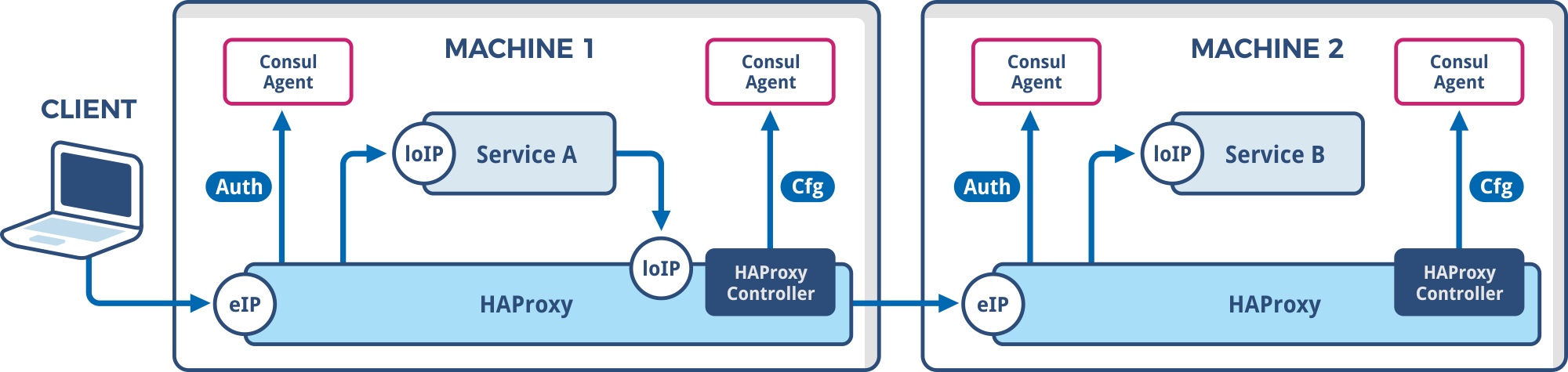

haproxy sidecar

Each service and Consul agent have a sidecar proxy, an instance of HAProxy

In the end, all service-to-service communication ends up going through proxies. You can see why it’s important to choose a proxy implementation that meets your needs. When it comes to speed and the right mix of features, HAProxy has a lot of benefits.

Server-Mode Agents

You’ve probably got a good idea about how the Consul agents that are running in server mode fit into this architecture. They maintain the service registry, which is the source of truth about where each service endpoint can be found. They also store the settings that each proxy needs to self-configure itself, such as TLS certificates. The Consul servers host the Consul HTTP API that local agents use to send and receive information about the cluster.

Agents in server mode must elect a leader using a consensus protocol that is based on the Raft algorithm. For that reason, you should dedicate an odd number of nodes, such as three, to participate in the quorum. These agents should reside on separate machines, if possible, so that your cluster has resiliency.

The Implementation

Baptiste Assmann presented a solution for integrating HAProxy with Consul at this year’s HashiConf conference in San Francisco.

During his presentation, he demonstrated using HAProxy as a sidecar that’s configured using information from the local Consul agent. It uses a Golang binary as the handler for configuring HAProxy. That will be available in Q1 of 2019.

In the meantime, he has reproduced its behavior using Bash. The HAProxy/Consul Github repository uses a Bash script to configure local instances of HAProxy. You can spin up this demo environment using Docker Compose. To get started, download the repository and then run the following commands:

You will then be able to open a browser and go to http://localhost:8500/ui to see the Consul dashboard. You’ll need to go to the ACL screen first and enter the master token secret: “mastertoken”, which we’ve set in consul-server/consul.d/basic_config.

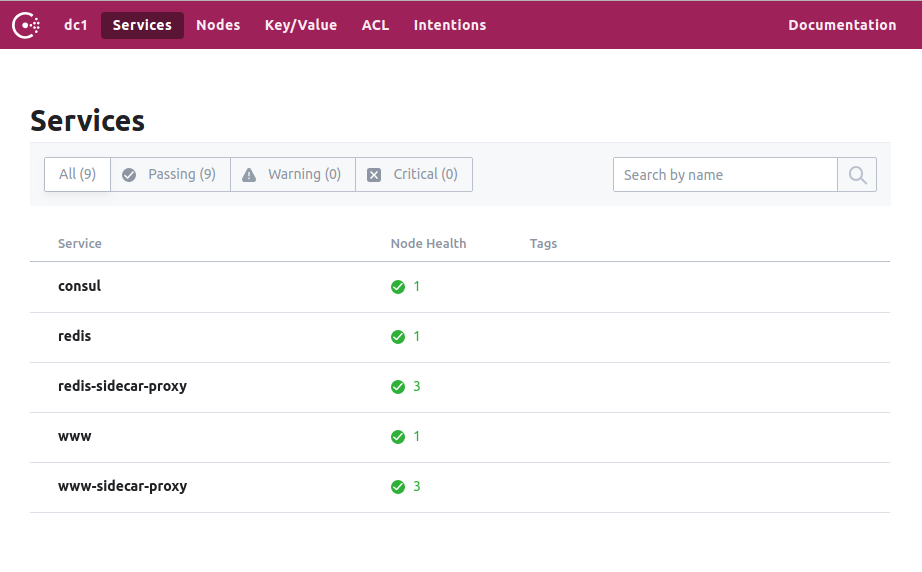

consul dashboard

The Consul Dashboard

Notice how a *-sidecar-proxy service has been generated for the two services we’re creating, redis and www. The www app is a Node.js application that connects to redis via the service mesh. It’s able to connect to Redis on localhost and the connection is routed to the right place.

For this example, each service is hosted inside of a Docker container. Within each container is the service, a local Consul agent, a running instance of HAProxy, and a script called controller.sh that configures HAProxy on the fly. There’s also a Lua file, authorize.lua, that validates the connections between services by checking the client certificate passed with each request. The shell script and Lua file are the same for both services.

They have different start.sh files though, which Docker executes on container startup. The start.sh script installs the service, which is the Node.js application for www and Redis for the redis container, and then registers it with the local Consul agent. Here is the JSON registration for www:

The Node.js app listens on port 8080 locally, but is exposed through the service mesh on an automatically assigned port chosen by Consul. There’s a dependency on the upstream Redis service. HAProxy binds it locally to port 6379, but proxies it to the Redis container on a port chosen by Consul. In this way, the Node.js app can access Redis at

Also note that a configuration parameter called unsecured_bind_port allows you to access the app from outside of the service mesh. So, you can go to http://localhost:21002 on the machine where you’re running Docker. Here’s a screenshot of what it looks like:

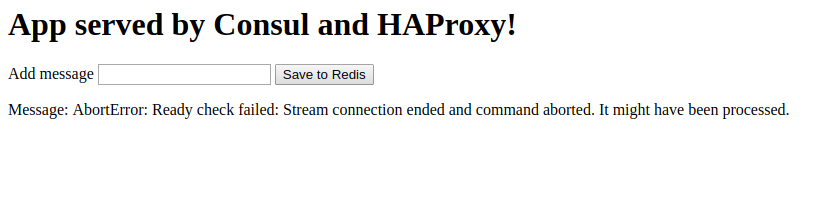

screenshot - entering the app from outside the service mesh

Your app can be accessed from outside of the service mesh

In the example code, we’ve enabled Consul ACLs with a default deny rule. Before the www app can connect to Redis, you must add an Intention. Intentions are rules that allow or deny connections between services. You could allow the Node.js app to connect to Redis by adding a new Intention:

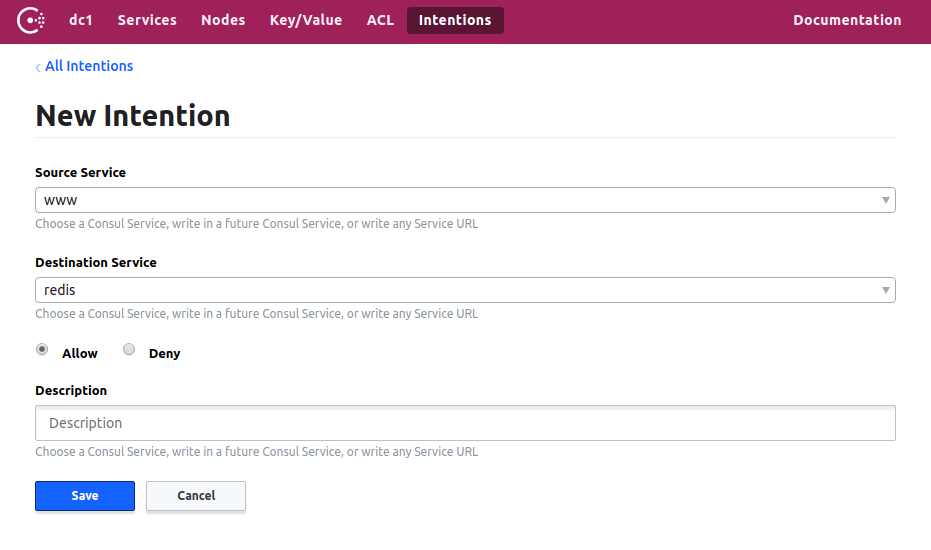

adding new intentions consul dashboard

Adding new Intentions allows the Node.js app to connect to Redis

Now, the app will succeed when it tries to read from or write to Redis:

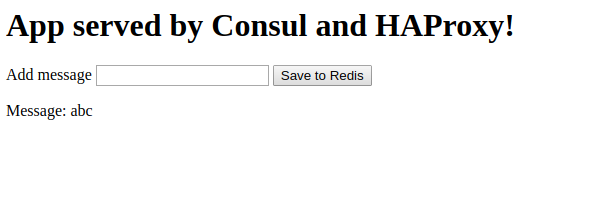

screenshot – successful app integration with redis

By adding new Intentions the app can successfully read from or write to Redis

After you remove the Intention, it will fail again due to the default deny set up by the ACL.

You can also see the HAProxy Stats page for the app by going to http://localhost:1936. This is great for troubleshooting connection problems.

To extend this example, add more containers, patterning them off of the given Dockerfiles. Then, update your start.sh file to install your application and register it with Consul. Last, add the new service to the docker-compose.yml file.


Consul’s Connect feature enables you to transform a Consul cluster into a service mesh. Connect is a pluggable framework that allows you to choose the proxy technology that fits your needs best.

In this blog post, you learned how HAProxy can be selected as the data plane, giving you access to features like TLS encryption, connection retry logic, server persistence, rate limiting, authorization between services, and observability. I hope you’re as excited as we are about the possibilities that this creates! In the coming months, we will be releasing more information about our integration with Consul and the new Golang implementation.
