PacketShield

LVS and Synproxy

The SYNPROXY module deploys TCP SYN cookies to establish a TCP connection terminated on a third party device located behind the HAProxy ALOHA. It relies on the conntrack module to translate sequence numbers.

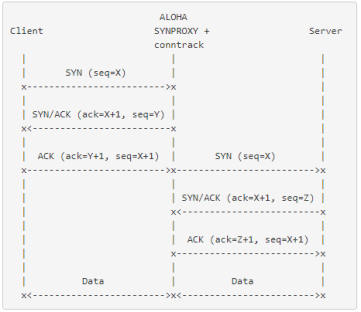

The diagram below show how sequence numbers are translated from Y (client to HAProxy ALOHA) to Z (HAProxy ALOHA to server):

TCP SYNPROXY

Info

After making changes using the GUI, make the changes persist after a reboot by going to the Setup tab and clicking Save within the Configuration section. After making changes using the CLI, execute config save to persist the changes.

Objective Jump to heading

In HAProxy ALOHA, the SYNPROXY module is mainly used for integration with PacketShield to provide protection against packet flood attacks in the following cases:

  • Traffic routed through HAProxy ALOHA

  • Load balancing at Layer 4 in NAT mode

  • Load balancing at Layer 4 in DSR mode if the server-to-client traffic is routed through HAProxy ALOHA

    Info

    PacketShield requires the TCP connection to terminate locally, which the SYNPROXY module emulates.

Configuring TCP SYNPROXY Jump to heading

Requirements Jump to heading

Configure the conntrack module Jump to heading

In the HAProxy ALOHA Services tab, edit the service settings to add the following setting to the conntrack service:

text
sysctl tcp_loose=0
text
sysctl tcp_loose=0

Info

The conntrack service is accessible in the advanced mode.

The sysctl command prevents conntrack from accepting packets as NEW packets and allowing SYNPROXY to work.

To make the configuration change persist after a reboot, execute config save.

Configure LVS Jump to heading

With LVS, the use of the SYNPROXY module leads to a SYN/SYN-ACK loop between clients and the load balancer.

To circumvent this issue, we use LVS in conjunction with conntrack.

  • In the HAProxy ALOHA Services tab, edit the service settings to add the following setting to the LVS service:

    text
    conntrack
    text
    conntrack

To make the configuration change persist after a reboot, execute config save.

SYNPROXY syntax rule Jump to heading

text
<chain> [conditions of application] [TCP options]
text
<chain> [conditions of application] [TCP options]

Available chains Jump to heading

Chain Description
<input> protect local or LVS connections
<forward> protect a connection routed through HAProxy ALOHA

Conditions of application Jump to heading

Condition Description
[[not] dst <host>] IP packet destination IP or subnet
[[not] iface <interface>] inbound network interface (should match PacketShield interface)
[[not] dstport <port>] IP packet destination port (range accepted)

TCP options Jump to heading

Option Description
[wscale <value>] Windows scale. Default value: not set. Requires timestamp.
[mss <value>] Maximum Segment Size. Default value: 1460.
[sack-perm] Selective Acknowledgment. Default value: not enabled. Requires timestamp.
[timestamp] Timestamps. Default value: not enabled.
[ecn] Explicit Congestion Notification. Default value: not enabled. Requires timestamp.

Info

TCP options are ignored when SYNPROXY module is used with PacketShield. In this case, PacketShield TCP options are used.

Configuring SYNPROXY module Jump to heading

  1. In the HAProxy ALOHA Services tab, edit a service configuration.

  2. In the text area, create your rules.

  3. To make the configuration change persist after a reboot, go to the Setup tab and click Save in the Configuration section.

Configuration examples Jump to heading

Protect HTTP and HTTPs services managed by HAProxy or LVS running in HAProxy ALOHA:

text
input dst 10.0.0.1 dstport 80 iface eth0 wscale 3
input dst 10.0.0.1 dstport 443 iface eth0 wscale 3
text
input dst 10.0.0.1 dstport 80 iface eth0 wscale 3
input dst 10.0.0.1 dstport 443 iface eth0 wscale 3

Protect HTTP and HTTPs services hosted by cloud service VMs located behind HAProxy ALOHA:

text
forward dstport 80 iface eth0 wscale 3
forward dstport 443 iface eth0 wscale 3
text
forward dstport 80 iface eth0 wscale 3
forward dstport 443 iface eth0 wscale 3
