Default gateway

To set a network interface’s default gateway by using the web UI:

1. Before beginning, be sure to:

   • [VM appliance] Create a snapshot of your VM.

   • [Hardware appliance] Make sure you can connect to your appliance through the serial port.

     If you specify an invalid IP address for the default gateway, you may not be able to log in to your appliance through SSH or display the web UI.

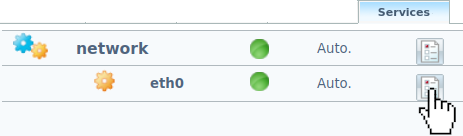

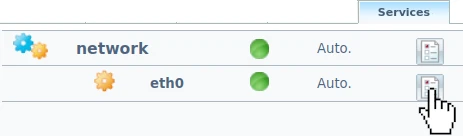

2. In the Services tab, click network instance setup next to a network interface.



3. Specify the default gateway through the ip route default directive.

   For example, to use the router whose IP address is 172.16.24.1 as the default gateway:

   haproxy
   service network eth0
     ip address 172.16.24.237/255.255.255.0
     ip route default 172.16.24.1

   haproxy
   service network eth0
     ip address 172.16.24.237/255.255.255.0
     ip route default 172.16.24.1

4. Optional: If you configure multiple network interfaces, for example eth0 and eth1, each with a different default gateway via ip route default, then assign a metric value to each one to indicate their order of preference. The default gateway with the lowest metric value has the highest priority and will be chosen when routing to destinations outside the network. If metric is not set, it defaults to 0.

   haproxy
   service network eth0
     ip address 172.16.24.237/255.255.255.0
     ip route default 172.16.24.1 metric 10

   haproxy
   service network eth0
     ip address 172.16.24.237/255.255.255.0
     ip route default 172.16.24.1 metric 10

   Beginning in HAProxy ALOHA 16.5, you can also use policy-based routing to set default routes on each interface.

5. Click OK and Close to return to the Services tab.

6. Reload the network interface or the whole network service.

   In versions newer than 16.0, click the Apply new configuration button on the interface to apply the changes and automatically restart the network interface service.

7. To check the default gateway, go to the Tools tab and click Launch a terminal. Then run netstat -r.

   nix
   netstat -r

   nix
   netstat -r

   output
   text
   Kernel IP routing table
   Destination     Gateway         Genmask         Flags   MSS Window  irtt Iface
   default         172.16.24.1     0.0.0.0         UG        0 0          0 eth0
   172.16.24.0     *               255.255.255.0   U         0 0          0 eth0

   output
   text
   Kernel IP routing table
   Destination     Gateway         Genmask         Flags   MSS Window  irtt Iface
   default         172.16.24.1     0.0.0.0         UG        0 0          0 eth0
   172.16.24.0     *               255.255.255.0   U         0 0          0 eth0

8. To make your changes persistent after a reboot, click the Setup tab. Then click Save under Configuration.

This method applies to HAProxy ALOHA 16.5 and newer

To set a network interface’s default gateway by using the Network Management CLI:

1. Before beginning, be sure to:

   • [VM appliance] Create a snapshot of your VM.

   • [Hardware appliance] Make sure you can connect to your appliance through the serial port.

     If you specify an invalid IP address for the default gateway, you may not be able to log in to your appliance through SSH or display the web UI.

2. If you haven’t already done so, install the Network Management CLI.

3. Go to the Tools tab and click Launch terminal.

4. Use the netctl connection show command to show existing connection profiles. From the output, get the ID to use in subsequent commands.

   nix
   sudo netctl connection show

   nix
   sudo netctl connection show

   output
   text
   ID             UUID                                  TYPE      DEVICE
   ethernet-eth0  b6a82f6f-3fdd-467f-b2a1-9e343ba66288  ethernet  eth0
   ethernet-eth1  8805fda9-b1a7-4d5c-bd83-615ceb9e9fdd  ethernet  eth1

   output
   text
   ID             UUID                                  TYPE      DEVICE
   ethernet-eth0  b6a82f6f-3fdd-467f-b2a1-9e343ba66288  ethernet  eth0
   ethernet-eth1  8805fda9-b1a7-4d5c-bd83-615ceb9e9fdd  ethernet  eth1

5. Using the connection profile’s ID, modify your existing network interface to set the default gateway IP address. Use the netctl connection modify and netctl connection up commands.

   nix
   sudo netctl connection modify ethernet-eth0 \
     ipv4.gateway 172.16.24.1
   sudo netctl connection up ethernet-eth0

   nix
   sudo netctl connection modify ethernet-eth0 \
     ipv4.gateway 172.16.24.1
   sudo netctl connection up ethernet-eth0

   output
   text
   # Stopping network[eth0] ...
     ==> stop network[eth0] : Done.
   # Starting network[eth0] ...
     ==> start network[eth0] : Done.
     ==> load ip config network[eth0] : Done.
   Connection successfully activated

   output
   text
   # Stopping network[eth0] ...
     ==> stop network[eth0] : Done.
   # Starting network[eth0] ...
     ==> start network[eth0] : Done.
     ==> load ip config network[eth0] : Done.
   Connection successfully activated

6. Save the configuration to make your changes persistent after a reboot.

   nix
   sudo config save

   nix
   sudo config save

To set a network interface’s default gateway by using the config command:

1. Connect to the appliance as user admin with the password admin through:

   • SSH at http://<IP Address>:4444/, or
   • the serial port.

   In version 13.5 and newer, you can also click Launch a terminal in the web UI’s Tools tab.

2. Become the root user.

   nix
   root

   nix
   root

3. Set up the default gateway with the config command.

   nix
   config set network.eth0 ip-route-default <GATEWAY>

   nix
   config set network.eth0 ip-route-default <GATEWAY>

   Example:

   nix
   config set network.eth0 ip-route-default 172.16.24.1

   nix
   config set network.eth0 ip-route-default 172.16.24.1

4. Restart the network service.

   nix
   service network restart

   nix
   service network restart

5. Save the configuration to make your changes persistent after a reboot.

   nix
   config save

   nix
   config save
