VLAN

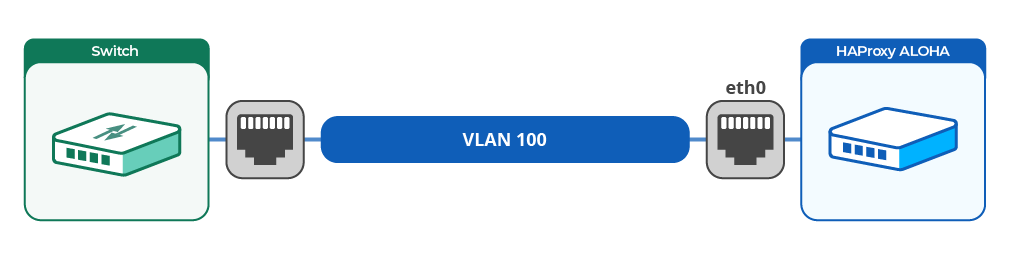

An HAProxy ALOHA network interface may be connected to a switch interface through a VLAN trunk link.

You can then create a VLAN interface on the HAProxy ALOHA instance to route traffic over the relevant VLAN.

See also

VLAN tagging

Create a VLAN interface

To create a VLAN interface, you have to create a new service network:

In the Services tab, click network setup to display the current configuration of your network interfaces.
Add a directive to create a new VLAN interface.

The syntax is as follows:
```
service network eth<id>.<vlanid>
```
- Create VLAN 100 on interface eth0.
```
service network eth0.100
   ip address 172.16.100.237/24
```
- Create VLAN 200 on bonding interface bond1.
```
service network bond1.200
   ip address 172.16.200.237/24
```
Note

A physical network interface can support both its own IP configuration and a VLAN interface.
Apply the configuration:
- If you just created the VLAN interface, click Restart on the network line.
- If you just updated an existing VLAN interface, click Reload .

You can manage IP configuration and VRRP settings in the same way as for a physical interface.
