RADIUS authentication

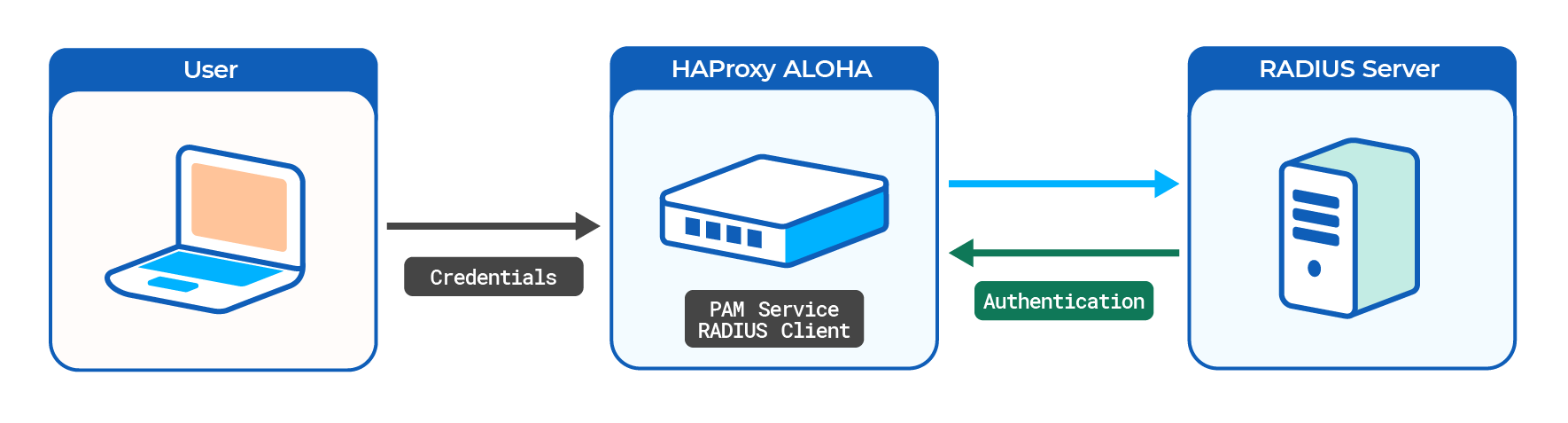

System administrators can authenticate to HAProxy ALOHA through an external RADIUS server for administration or monitoring purposes.

You can, for example, implement the following list of access rights:

Configure the RADIUS server Jump to heading #

In this example, we will authenticate users through the traditional RADIUS users file. Alternatively, the RADIUS server can query an LDAP server.

We will use a FreeRADIUS 3.0 server.

1. Follow the FreeRADIUS Getting Started guide to install FreeRADIUS on a server.

2. Add your HAProxy ALOHA appliance as a new RADIUS client in the FreeRADIUS client configuration file, /etc/freeradius/3.0/clients.conf.

   /etc/freeradius/3.0/clients.conf
   client aloha {
     # The ALOHA IP address
     ipaddr = 192.168.1.38

     # Secret shared between the RADIUS server and ALOHA
     secret = saUz@w7!iwfa

     # Do not require the Message-Authenticator field
     require_message_authenticator = no

     # Transport protocol
     proto = udp

     # Network Access Server type for ALOHA
     nas_type = other
   }

   /etc/freeradius/3.0/clients.conf
   client aloha {
     # The ALOHA IP address
     ipaddr = 192.168.1.38

     # Secret shared between the RADIUS server and ALOHA
     secret = saUz@w7!iwfa

     # Do not require the Message-Authenticator field
     require_message_authenticator = no

     # Transport protocol
     proto = udp

     # Network Access Server type for ALOHA
     nas_type = other
   }

   Caution

   Change the secret string.

3. Add usernames and passwords to the RADIUS user authorization file, /etc/freeradius/3.0/mods-config/files/authorize.

   /etc/freeradius/3.0/mods-config/files/authorize
   alice Cleartext-Password := "TmjRDl61NuiA"
   bob   Cleartext-Password := "AIQols16y1R6"
   carol Cleartext-Password := "Jb4cWp70D94u"
   dave  Cleartext-Password := "Jkxv:Qoc;p4@"

   /etc/freeradius/3.0/mods-config/files/authorize
   alice Cleartext-Password := "TmjRDl61NuiA"
   bob   Cleartext-Password := "AIQols16y1R6"
   carol Cleartext-Password := "Jb4cWp70D94u"
   dave  Cleartext-Password := "Jkxv:Qoc;p4@"

   You can also limit how a user can log into HAProxy ALOHA to one of the following methods:

   Login method ID	Description
   wui	Log in via the web UI.
   sshd	Log in via SSH.
   login	Log in via a local keyboard or serial login.

   Add a NAS-Identifier parameter to set the login allowed, for example:

   /etc/freeradius/3.0/mods-config/files/authorize
   carol Cleartext-Password := "Jb4cWp70D94u", NAS-Identifier == "wui"

   /etc/freeradius/3.0/mods-config/files/authorize
   carol Cleartext-Password := "Jb4cWp70D94u", NAS-Identifier == "wui"

4. Restart the RADIUS server.

   nix
   sudo systemctl restart freeradius

   nix
   sudo systemctl restart freeradius

   To test your setup, start the RADIUS server in debug mode.

Configure HAProxy ALOHA Jump to heading #

On the HAProxy ALOHA server:

1. Edit the file /etc/security/pam_radius.conf.

2. Select the Tools tab, then use the File manager to browse to the /etc/security folder and edit the file pam_radius.conf.

3. Add your RADIUS server. Use the same secret string you specified in the FreeRADIUS client configuration file.

   # RADIUS Server[:Port]  Shared Secret  [Timeout (s)]  [source_ip] [vrf]
    192.168.1.69            saUz@w7!iwfa   60

   # RADIUS Server[:Port]  Shared Secret  [Timeout (s)]  [source_ip] [vrf]
    192.168.1.69            saUz@w7!iwfa   60

4. Edit the file /etc/security/users.conf.

5. Select the Tools tab, then use the File manager to browse to the /etc/security folder and edit the file users.conf.

6. Add the same users that you defined on the RADIUS server, specifying the following for each:

   • auth_type of radius
   • Optional: service set to wui, sshd, or login. This is another way restrict how a user can log in, rather than setting it in the FreeRADIUS authorize file.
   • allow or deny to enable or disable this user’s login
   • map_to_user set to either admin for read/write access or monitor for read-only access.

   For example, these directives implement the example access rights listed at the top of this page.

    user=alice      auth_type=radius                  : allow map_to_user admin
    user=bob        auth_type=radius service=wui,sshd : allow map_to_user admin
    user=carol      auth_type=radius service=wui      : allow map_to_user admin
    user=dave       auth_type=radius service=wui      : allow map_to_user monitor

    :deny

    user=alice      auth_type=radius                  : allow map_to_user admin
    user=bob        auth_type=radius service=wui,sshd : allow map_to_user admin
    user=carol      auth_type=radius service=wui      : allow map_to_user admin
    user=dave       auth_type=radius service=wui      : allow map_to_user monitor

    :deny

   Caution

   The :deny entry must be the last in the file. HAProxy ALOHA evaluates entries from top to bottom. All entries after :deny are ignored.

7. In the Services tab, click pam setup.



8. Add RADIUS support to the PAM service.

   haproxy
   service pam
      autostart
      radius_auth 1

   haproxy
   service pam
      autostart
      radius_auth 1

   Tip

   To get more verbose logs for easier troubleshooting, specify debug 1 as well.

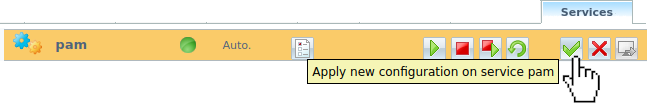

9. Apply your changes to the PAM configuration.

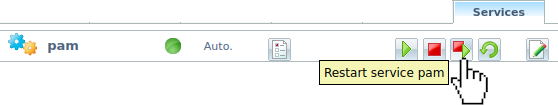

10. Restart the PAM service.

11. Save your configuration from the Setup tab.

    You can also launch the following commands from a terminal:

    nix
    sudo config set pam ldap_auth 1
    sudo config set pam autostart
    sudo service pam restart

    nix
    sudo config set pam ldap_auth 1
    sudo config set pam autostart
    sudo service pam restart

You can now test logging in to the web UI with various credentials.

Reference Jump to heading #

RADIUS clients.conf syntax Jump to heading #

HAProxy ALOHA pam_radius.conf syntax Jump to heading #

HAProxy ALOHA users.conf syntax Jump to heading #

Each line in the users.conf file comprises at least one filter and one action.

<FILTERS>:<ACTIONS>

<FILTERS>:<ACTIONS>

You can specify multiple comma-separated filters and actions on the same line.

Filters Jump to heading #

user

auth_type

map_to_user

service

Actions Jump to heading #

allow

Grant access.

deny

Forbid access.

map_to_user

See also Jump to heading #

• FreeRADIUS documentation
