The ALOHA load balancer supports VLAN tagging and can be integrated in such an environment.

VLANs follow the rules below:

  • A physical interface can have its own IP configuration and a VLAN interface

  • The VLAN must be tagged on the switch

  • A VLAN interface can be created on top of a bond interface

Create a VLAN interface

To create a vlan interface, you have to create a new service network:

  1. Browse the ALOHA WUI.

  2. Open the Services tab.

  3. Click Setup setup_icon on the Network line.

  4. Add a directive to create a new VLAN interface

    service network eth<id>.<vlanid>

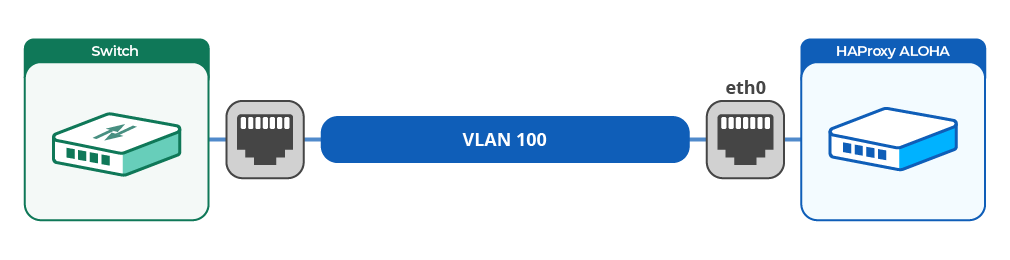

    Create vlan 100 on eth0

    service network eth0.100
       ip address

    Create vlan 200 on bond1

    service network bond1.200
       ip address
  5. Click OK.

  6. Click Close.

  7. Apply the configuration:

    • If you just created the VLAN interface, click Restart restart_icon on the network line.

    • If you just updated an existing VLAN interface, click Reload reload_icon.

Configure a VLAN interface

You configure a VLAN interface in the same way as the physical interface.

All the documentation available in the IP configuration and VRRP pages also applies to VLAN interface.
