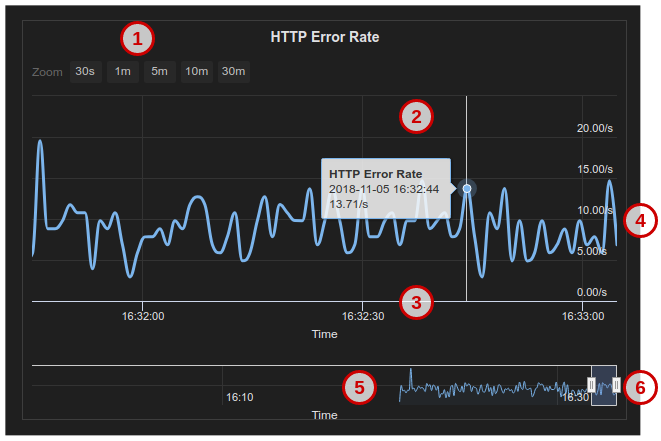

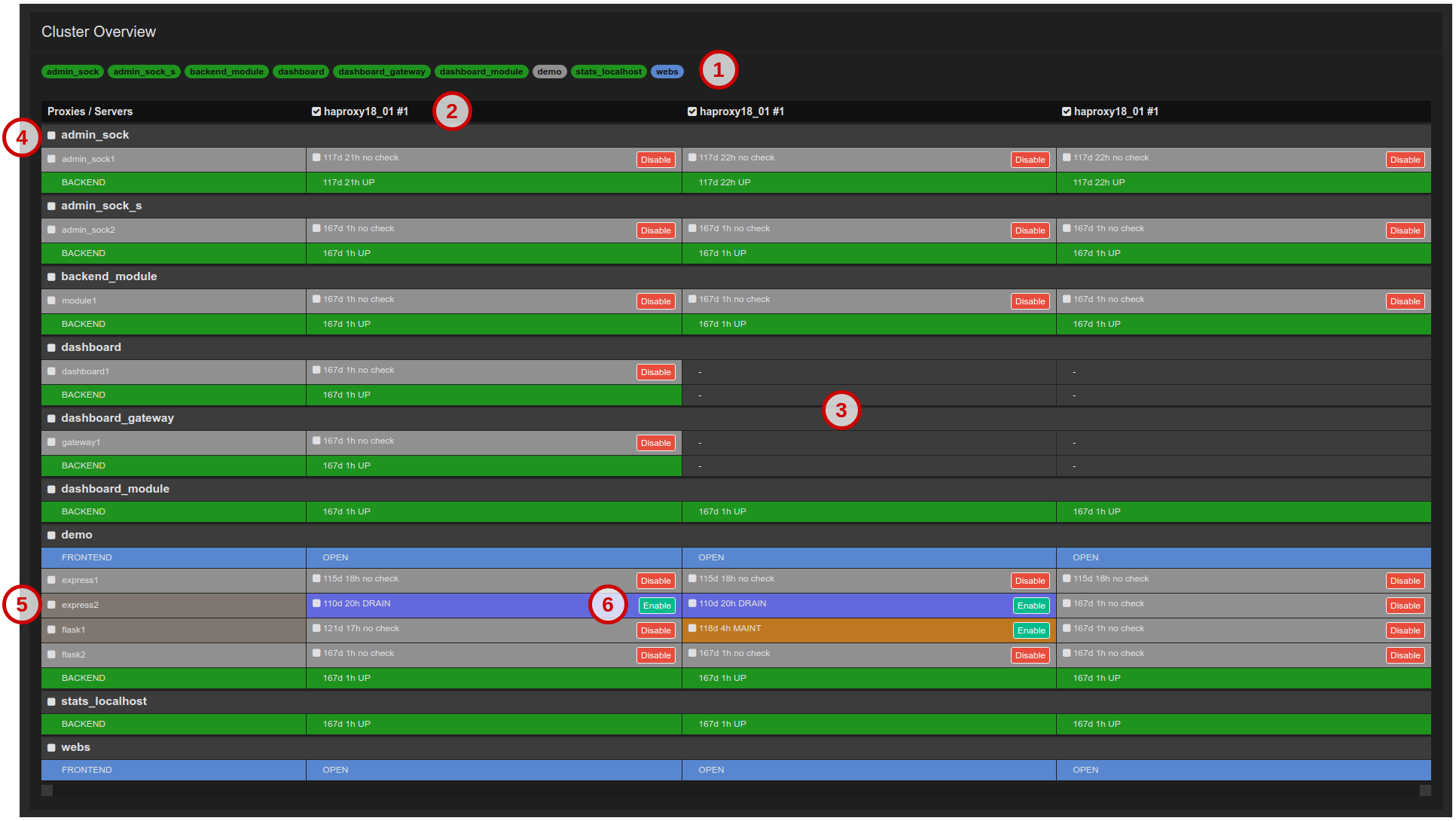

The Real-Time Dashboard is a Web application that shows live metrics from your servers and allows you to manage HAProxy Enterprise by gathering statistics via a specialized endpoint.
As an HAProxy Enterprise customer, you have access to an instance of the dashboard within the Customer Portal at https://dashboard.haproxy.com.
You can also install the dashboard on your own server, as described here. In either case, this dashboard starts off empty until you connect it to a data source.
Use your system's package manager (apt or yum) to install the dashboard package onto the HAProxy server:
$ sudo apt install hapee-2.1r1-lb-dashboard
This installs the following components:
Configuration that exposes a new endpoint within HAProxy at port 9022. When a request arrives at this port, HAProxy dispatches it to a Lua module that returns statistics for the dashboard to use.
Folder that contains the Lua module that exposes HAProxy statistics. It contains:
dashboard.luac - Lua module for statistics.
dashboard-config.lua - Configuration file that defines a cluster of HAProxy instances from which to gather statistics.
Folder that contains the Web application for the dashboard.
If you don't use the dashboard at https://dashboard.haproxy.com, copy the folder /opt/hapee-2.1/dashboard/dashboard to your Web server to host it yourself. Consult your Web server's instructions for hosting static files.

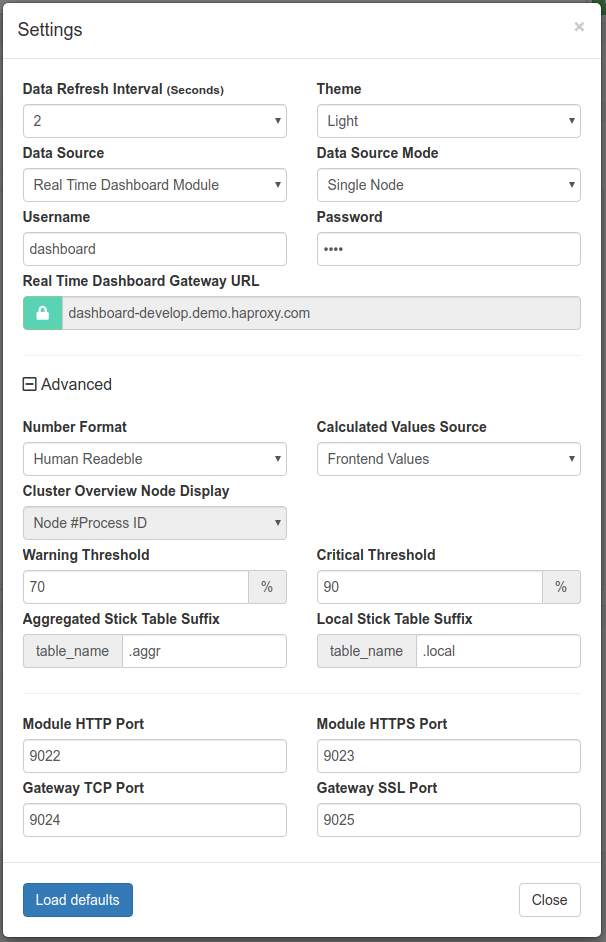

By default, the Real-Time Dashboard configuration looks for metrics data at the same IP address as the one where it is hosted. You must configure HAProxy to expose metrics data, and update the dashboard to point to this new data source.
Host the Real-Time Dashboard
To give you an example of hosting the dashboard yourself, you can use the following Python commands to start a rudimentary web server, as follows:
$ cd /opt/hapee-2.1/dashboard/dashboard $ python3 -m http.server 8000

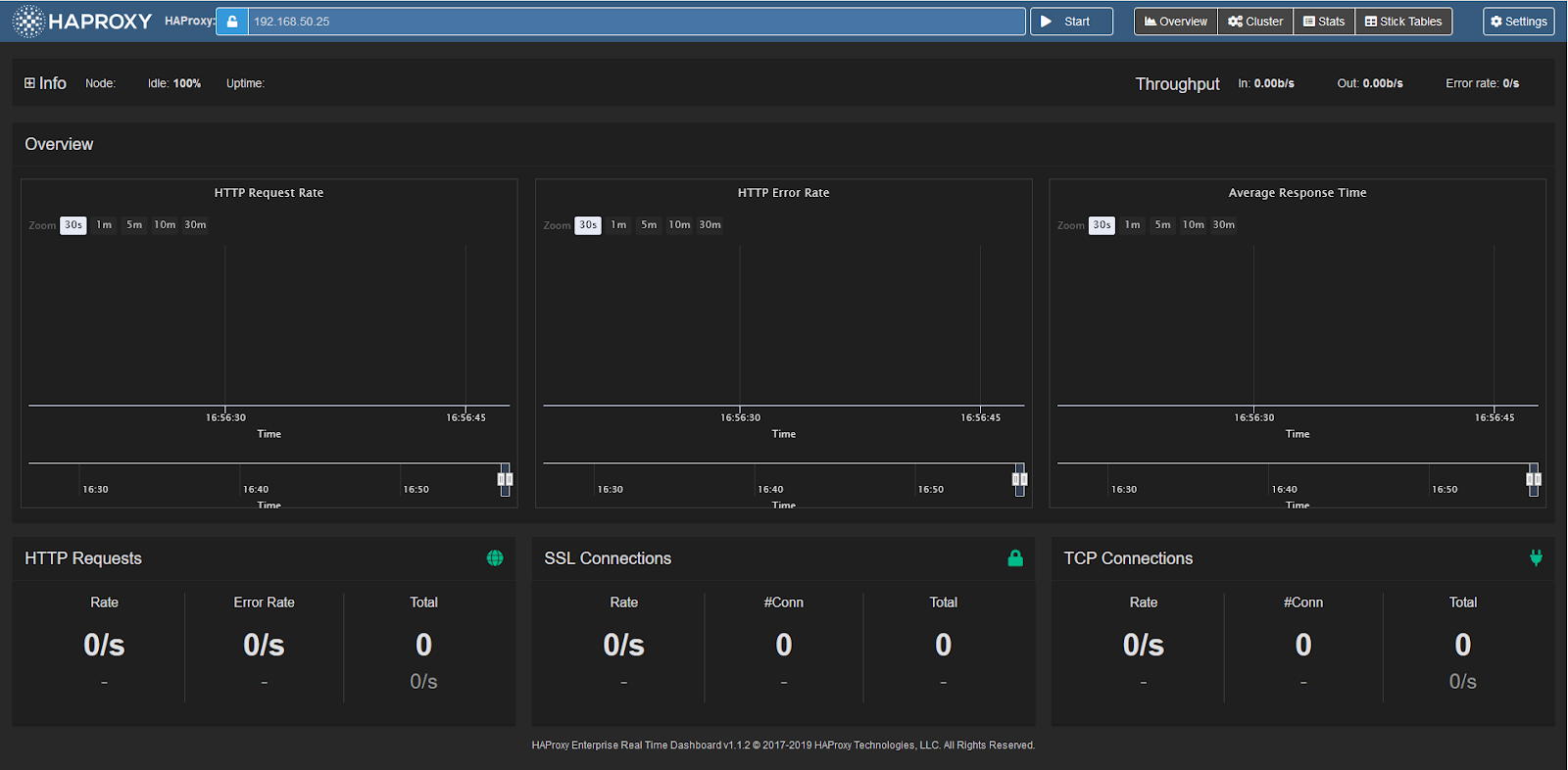

Open the Real-Time Dashboard at port 8000 using your Web browser.
