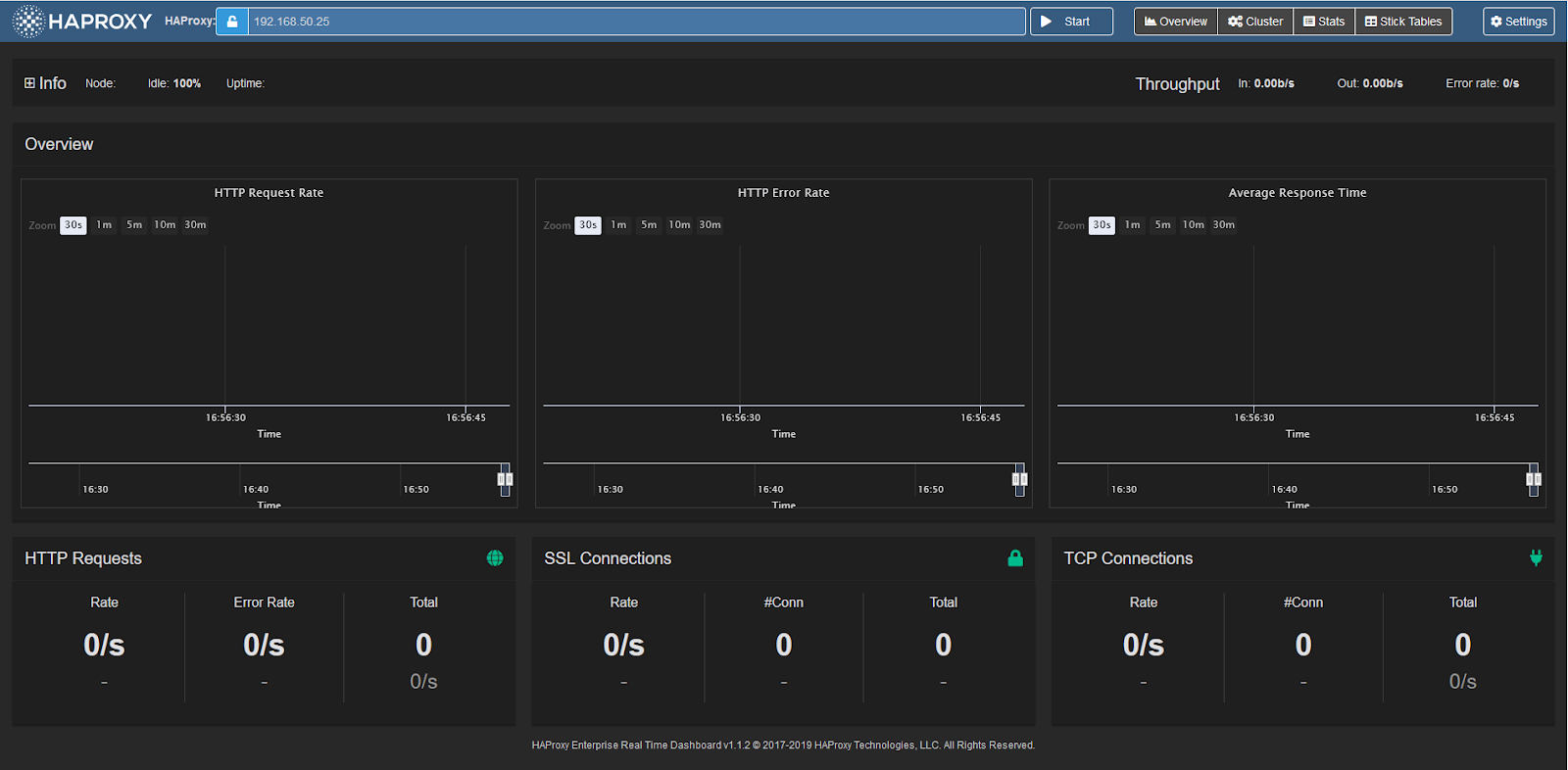

Using the Dashboard
You configure the Real-time Dashboard in "Settings" at the top right of the header bar.

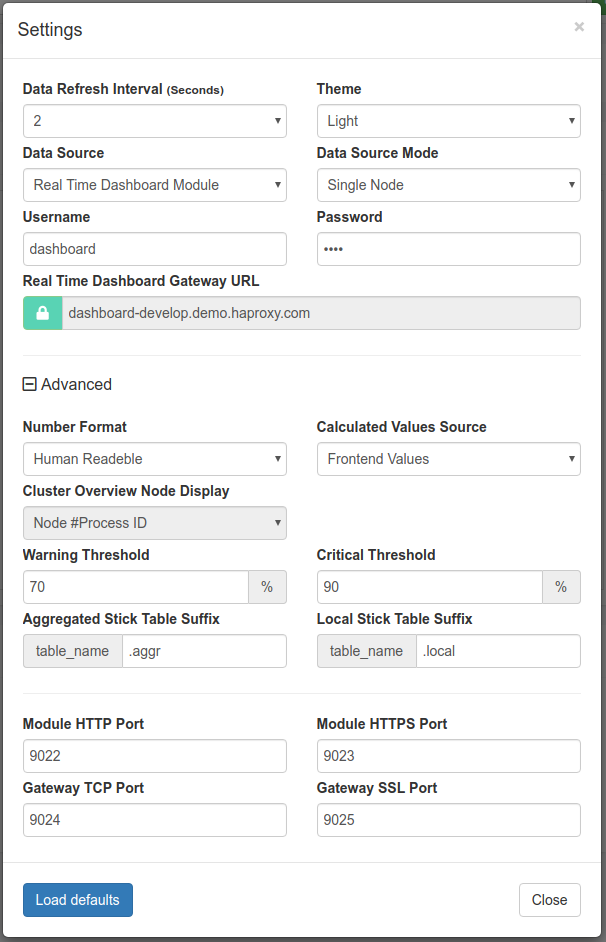

Real-time Dashboard basic settings
Real-time Dashboard saves these settings automatically in the browser's "local storage" and they persist throughout page reloads and browser restarts.
-
You can modify the following settings:
Basic setting
Description
Data Refresh Interval
Data refresh period.
Theme
GUI theme. Currently available themes are Dark (default) and Light.
Data Source
Real-time Dashboard module (default) or Real-time Dashboard Gateway.
Data Source Mode
Single Node - Real-time Dashboard requests and displays only the data from the module node it connects to, or the addressed node when the data source is Gateway
Cluster Aggregation - Real-time Dashboard requests and displays data from all HAProxy Enterprise nodes from which the module or Gateway was configured to aggregate data.
Username
Username for connecting to the Module or Gateway.
Password
Password for connecting to the Module or Gateway.
Real-time Dashboard Gateway Address
URL of the Real-time Dashboard Gateway (applicable when Data Source is set to "Real-time Dashboard Gateway").
Advanced setting
Description
Number Format
Select between three different formats to display numerical values in Real-time Dashboard:
Human Readable - formats values and adds SI order-of-magnitude suffixes (i.e. 1.26 kb/s)
Formatted Values - inserts commas in the value and limits the number of decimal places (i.e. 1,261.00 b/s)
Raw Values - displays the raw value from the statistics, except when Real-time Dashboard calculates the value, in which case it also limits the number of decimal places (i.e. 1261.00 b/s)
Calculated Values Source
Frontend Values - The values for graphs and Info Bar are summarized from the frontend block stats, errors are request errors
Backend Values - The values for graphs and Info Bar are summarized from the backend block stats, errors are response errors
Cluster Overview Node Display
Determines the Node display format on Cluster Overview pane:
Node #Process ID
- i.e.my_server #2
Host:Port
- i.e.127.0.0.1:9022
Warning Threshold
For values on the Overview Pane with configured limits, this determines the percentage of the limit acting as a threshold over which values show a warning color (yellow). Default is 70%.
Critical Threshold
For values on the Overview Pane with configured limits, this determines the percentage of the limit acting as a threshold over which values show a critical color (red). Default is 90%.
Aggregated Stick Table Suffix
The suffix that the Stick Table Aggregator takes on to denote the aggregated (i.e. to) stick tables. Default is
.aggr
Local Stick Table Suffix
The suffix that the Stick Table Aggregator takes on to denote the source (i.e. from) stick tables. Default is
.local
Module HTTP Port
Port number that Real-time Dashboard listens on by default for non-TLS HTTP connections. If there is no other value specified in the Header URL Box, this is the port number that Real-time Dashboard connects to. Default: 9022.
Module HTTPS Port
Port number where the Real-time Dashboard listens on by default for HTTPS connections (when the URL Box is in "locked" state
). Default: 9023.
Gateway TCP Port
Port number where the HAProxy Enterprise Admin Socket listens on by default for non-TLS socket connections. This value gets relayed to the Dashboard Gateway if there is no other value specified in the URL Box. Default: 9024.
Gateway SSL Port
Port number where the HAProxy Enterprise Admin Socket listens on by default for TLS-encrypted socket connections (when the URL Box is in "locked" state
. If there is no other port value given, this value gets relayed to the Dashboard Gateway). Default: 9025.
Click "Close" to modify your settings.
Click "Load defaults" if you need to return to default settings.
Read metrics in Real-time Dashboard

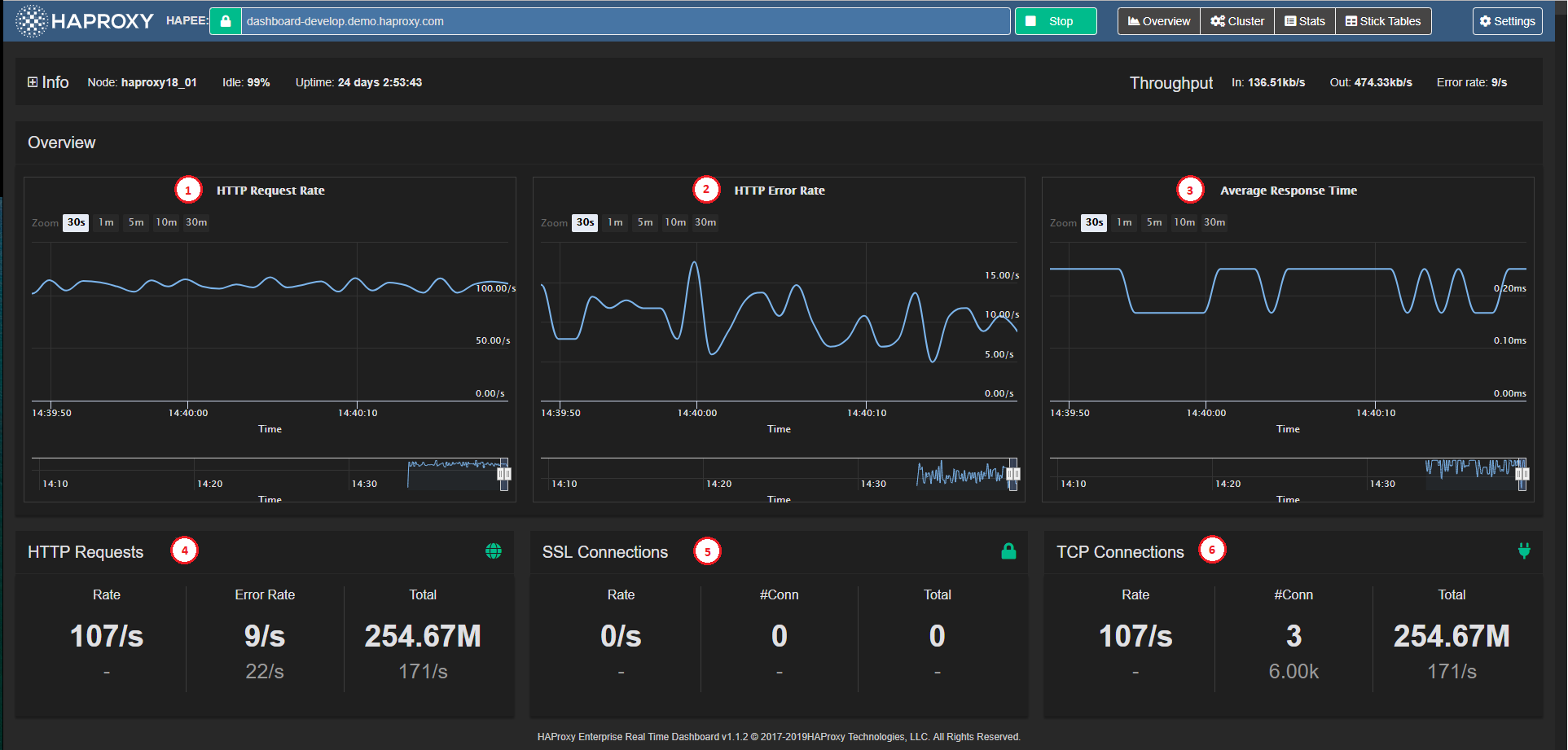

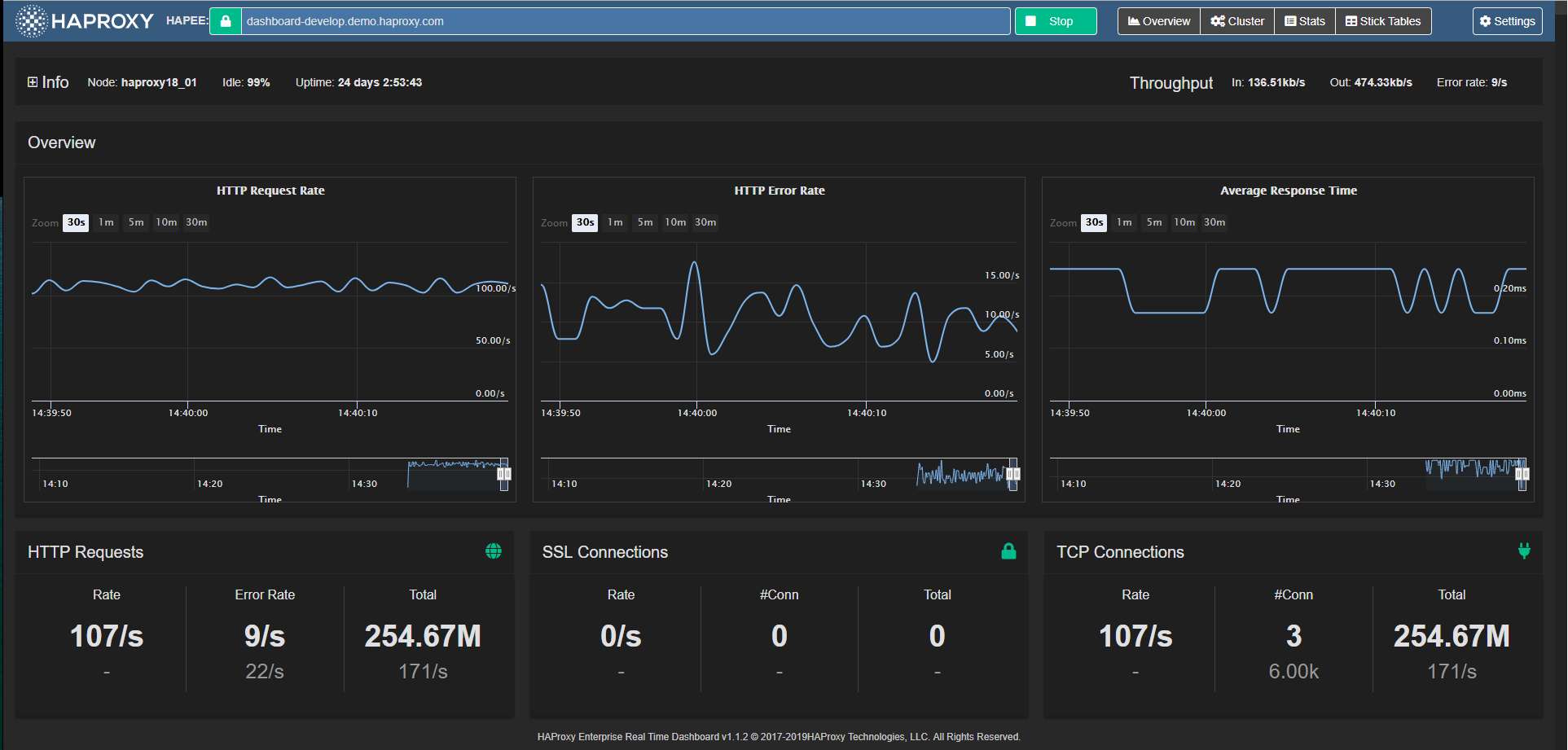

Overview
The Overview window is the initial view of the application. It displays the node-level (or cluster-level) summarized information, as well as key metric charts.

It contains the following elements:
- HTTP Request Rate Chart (1)
-
Charts the total HTTP request rate across the node (or across all nodes in Cluster Mode).
- HTTP Error Rate Chart (2)
-
Charts the total HTTP error rate across the node (or across all nodes in Cluster Mode).
- Average Response Time Chart (3)
-
Charts the average response time across the node (or across all nodes in Cluster Mode).
- HTTP Requests Panel (4)
-
Displays the node-level (or aggregate) HTTP Request related stats and limits.
- SSL Connections Panel (5)
-
Displays the node-level (or aggregate) SSL Connection related stats and limits.
- TCP Connections Panel (6)
-
Displays the node-level (or aggregate) TCP Connection related stats and limits.

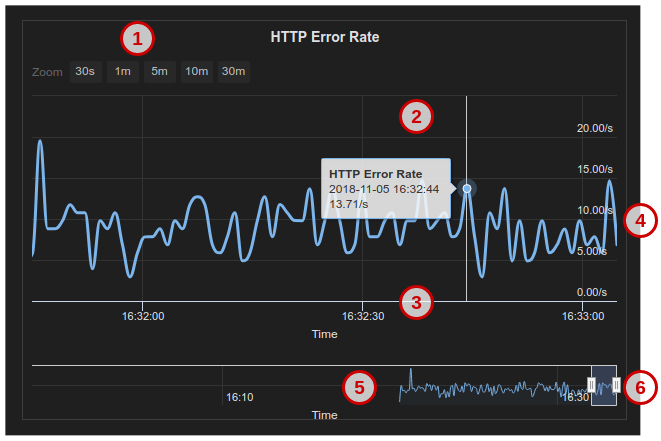

Overview Charts
The Overview graphs display information for HTTP traffic, average response time, and SSL/TCP connections.

- Zoom Level Selector (1)
-
Sets five different zoom levels for the Main Chart Display (30 seconds, 1 minute, 3 minutes, 10 minutes, and 30 minutes) The zoom level is synchronized across all three Overview Graphs.
- Main Chart Display (2)
-
A tool tip appears when hovering over any chart point to show the detailed data point (time and value). This data point is synchronized across all three Overview Charts.
- Time Axis (3)
-
Horizontal axis is the data point event time axis
- Value Axis (4)
-
Vertical axis is the data-point values axis
- Chart Navigator (5)
-
Displays the local data history in a miniature view with its own time axis.
- Navigator Handles (6)
-
Focuses on a time period in the local history when you drag the handles. When you release the handle, the selected zoom level/period is synchronized across the three Overview Charts.
Read statistics in Real-time Dashboard

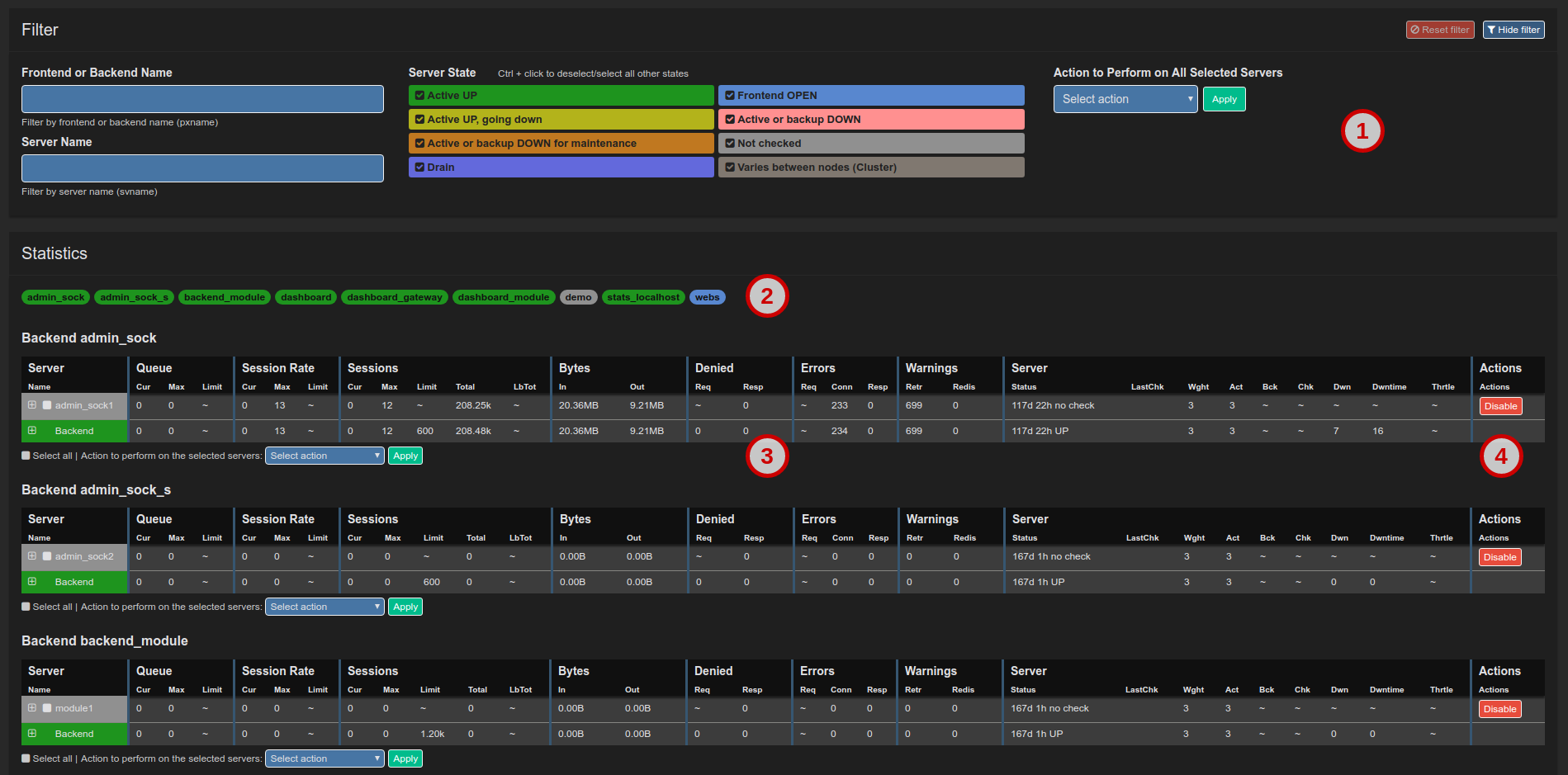

Stats Pane
The Stats Pane presents individual Proxy (frontend, backend or listen block) statistics, as well as individual Server statistics in a table view.

The Stats Pane consists of the following major sections:
- Filter Block (1)
- Quick Navigation buttons (2)
-
Gives quick access to the selected Proxy on the screen.
- Stats Tables (3)
-
Proxy and Server statistics, see Stats Pane under Data Fields for more detailed data on statistics values.
- Quick Action Buttons (4)
-
See below
Stats Table
The tables operate slightly differently depending on the Data Source Mode:
Single Node: Each server appears on one line, and its statistics and status come from the node to which Real-time Dashboard is connected.
Cluster Aggregation: Each server appears as a header line in gray with statistics and status aggregated across all the nodes that it contains.
Depending on the mode, Stats tables display the following information:
- Proxy Name
-
Real-time Dashboard infers from available server lines whether the block is a frontend, backend, or listen (or FE/BE pair with same name, which it treats as a listen block).
- Server Names
-
Name of the server
- Statistics Columns
-
Hover over each column heading to display additional information. If the server state is not up, the entire row takes on the Server State color, as used for Filter Block labels. See "Stats Pane" in the section Understanding data from Real-time Dashboard for more detailed data on statistics values.
Drill down for more information
Click the
icons to display statistics for each node (when in cluster mode)
Perform an administrative task
Select a server or all servers in the proxy.
Choose an action from the drop-down list.
Click "Apply".
Enable or disable proxy
The "Enable/Disable" button on the right of the screen allows you to turn off the server for maintenance or turn it back on if it is down.
Read proxy and server states

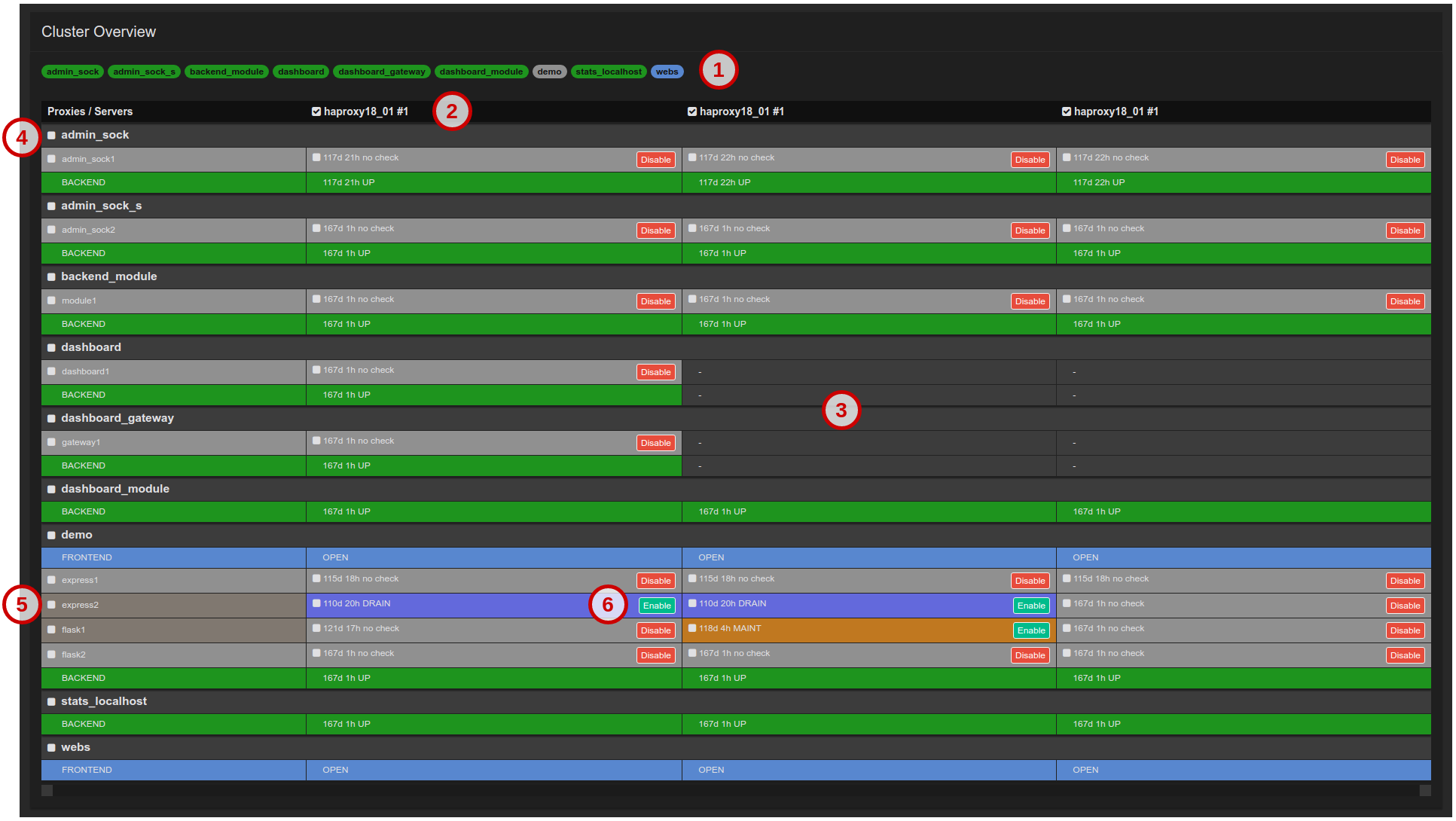

The Cluster Overview displays with a matrix/"spreadsheet" overview of states of Proxies and Servers for each connected HAProxy Enterprise Node (see Dashboard Aggregation Cluster). The columns in the matrix represent the nodes (which can be HAProxy Enterprise nodes or processes).

The key elements on the pane are:
- Quick navigation buttons (1)
-
Allows quick access to a server or proxy.
- Cluster nodes (2)
-
The rows in the matrix represent HAProxy Enterprise Nodes. The check boxes allow you to select a server or proxy on which to perform an administrative task.
- Cluster Overview Matrix (3)
-
Displays an overview of statuses for Proxies and Servers across Nodes. Servers that do not exist on specific nodes display an empty space (background color) in the matrix.
- Proxy Rows (4)
-
The rows are organized into Proxies containing Servers. The check boxes allow you to select a server or proxy on which to perform an administrative task.
- Server Rows (5)
-
The status color of the header column is medium-gray when the status for the server varies across nodes
- Server Columns (6)
-
Each cell (column) represents the Server status on that column's node.

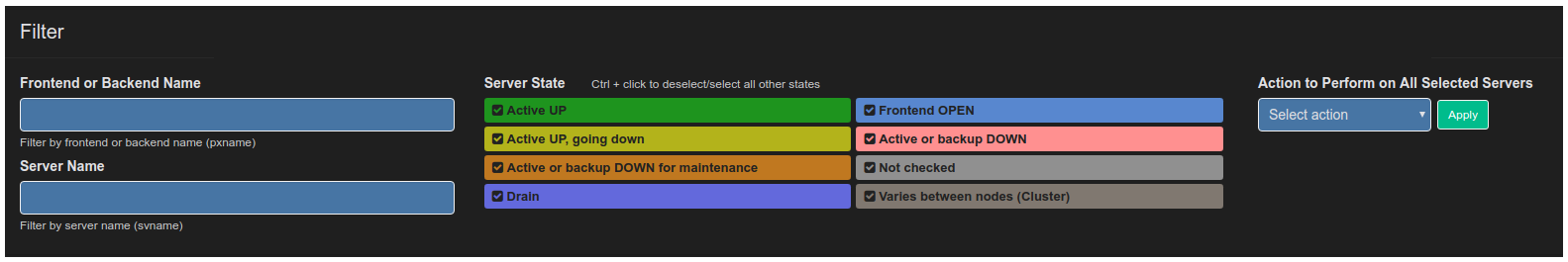

Set filter criteria
Filtering allows you to display or to perform administrative tasks on selected proxies (i.e. frontend, backend and/or listen blocks) in both Stats and Cluster panes.
The filter criteria persist when you switch between Stats and Cluster panes.

Select filter
You can set filters in the following ways:
-
Text - Allows filtering by Frontend or Backend Name (i.e. Proxy name) or by Server Name. There are three modes of filtering:
Partial String Matching: For example, when you enter "ss", it matches up with "blessing", "pass", or "sserver".
Multi-String Partial Matching: For example, when you enter "we se" it matches up with "webserver", "awesome_service" and "we_base".
RegEx Matching: For example, when you enter a string that begins and ends with a forward slash ("/") it matches only those strings that a regular expression between those two slashes would match. The precise regular expression syntax used is JavaScript Regular Expressions.
Server Status - Allows filtering by server status. A click on any server status toggles its state between selected and unselected.
Use filter for administrative tasks
For a list of administrative tasks, see the section on how to Manage servers.
Reset filter
Click
to restore the filter to default state (all Proxies/Servers visible); this function is enabled only when filter is active.
Hide filter
Click
to collapse the filter block (to free up vertical screen space).
Retrieve Stick Table contents
The Stick Table Explorer enables the user to retrieve the contents of stick tables from the HAProxy Enterprise node, and to sort them and filter them to gain insight into the data contained within, and even export them into Excel-friendly CSV format.

The Real-time Dashboard works with the Stick Table Explorer to enable you to explore the contents of HAProxy Enterprise Stick Tables in your node(s).
The aggregation cluster mode assumes that the Stick Table Aggregator (hapee-stktagg
) aggregates stick tables across the same set of nodes, and that the primary node uses aggregated stick tables from the Stick Table Aggregator.
Local tables used for aggregation have the suffix .local
, and resulting aggregated tables have the suffix .aggr
(modifiable in General Settings).
Apart from setting up the aggregation cluster and editing table suffixes as necessary, there is no additional setting to configure in Real-time Dashboard.

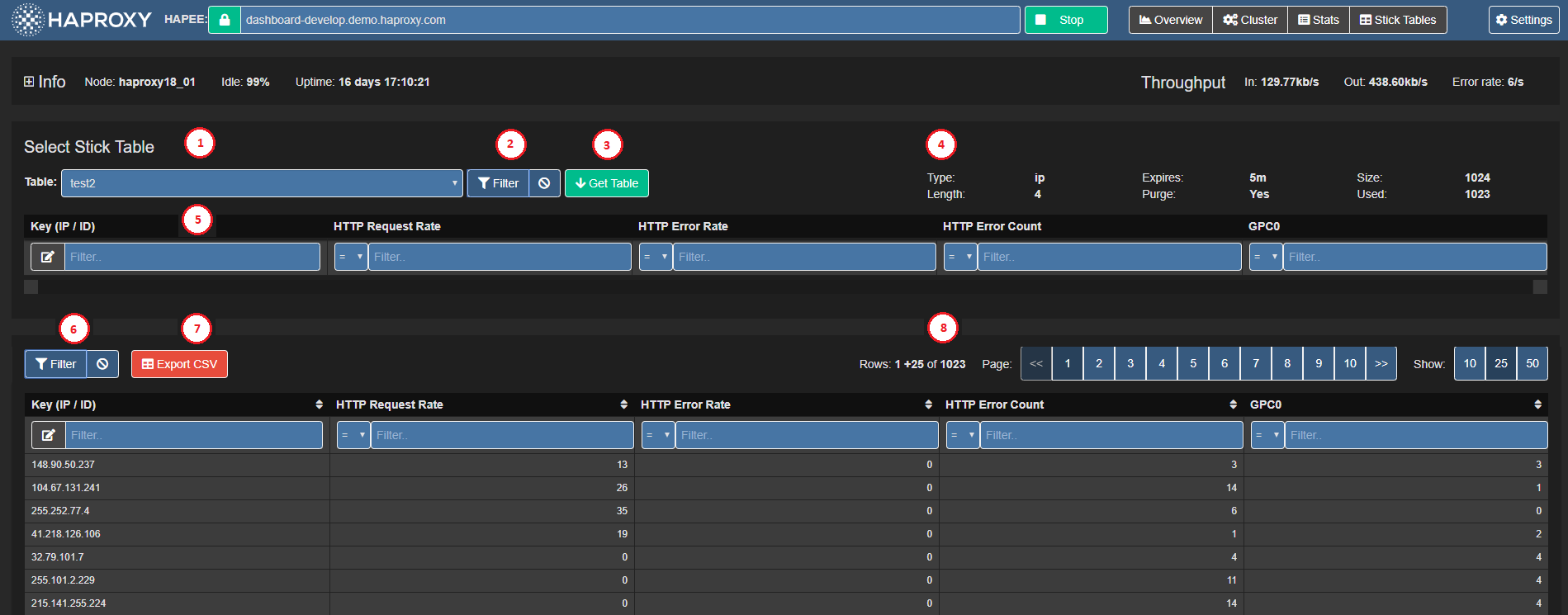

Retrieve a stick table
Click on
in the header bar to display the Stick Table Explorer.
Select a table from a drop-down list (1).
Filter out any unwanted data by clicking
(2) and specifying the filter criteria. Toggling this button shows or hides the filter.
-
Click
(3) to retrieve the following stick table information (4):
Type - type of key
Length - number of table columns
Expires - how long a row is kept in the table before it expires
Purge - whether the table purges old elements
Size - maximum number of rows
Used - current number of rows
Apply filters
You can filter table data in two stages:
Globally, prior to node retrieval (5): Real-time Dashboard retrieves data on the HAProxy Enterprise node itself according to the filtering criteria (up to four maximum).
Locally, in the browser (6): In contrast to the global filter, which occurs on the HAProxy Enterprise node itself, the local filter happens within the browser. When you remove a criterion, the table refreshes accordingly; however, it has no effect on the amount of data retrieved from the node.
You can combine the two filters to limit the data retrieved and refine the data to display within the browser.
Set a filter using the interface
Enter a key (string enclosed in quotes "").
-
Select an operator from the drop-down list and enter a value.
Set a filter using an expression
In the filter box, click on
to turn it into a text input box.
-
Enter an expression in the following format:
[data_name operator value] AND [data_name operator value] ... AND [data_name operator value]
. The logical AND is implicit in the filter and no other logical operator is accepted.where:
data_name is one of:
key, server_id, gpc0, gpc0_rate, gpc1, gpc1_rate, conn_cnt, conn_cur, conn_rate, sess_cnt, sess_rate, http_req_cnt, http_req_rate, http_err_cnt, http_err_rate, bytes_in_cnt, bytes_in_rate, bytes_out_cnt, bytes_out_rate
. When you hover over the table header, a tool tip displays its data point name.operator is any of =, !=, <, >, <= and =>
value is numerical value used for comparison in the filter.
Export CSV
-
Click
(7) to download the entire table in CSV format.
Sort data
Click on the up or down arrow next to the column header to sort data by ascending or descending order.
Understanding data from Real-time Dashboard
The Real-time Dashboard interface contains a number of input and output values. The following list documents their meaning, syntax, and, if applicable, the current method of value calculation.
Overview Pane
The "Overview" pane displays general and summarized real-time information about the HAProxy Enterprise node.
Overview | Description |
---|---|

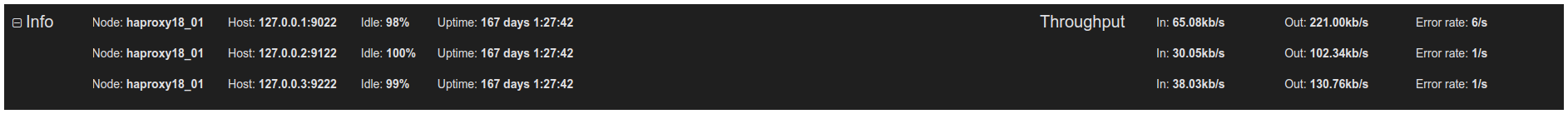

Overview - Throughput | Real time throughput rates for the HAProxy Enterprise process, containing 3 values:
|
Overview - HTTP Request Rate | A graph representation of HTTP request rate, in requests per second. |
Overview - HTTP Error Rate | A graph representation of HTTP error rate, in errors per second. |
Overview - Average Response Time | A graph representation of average HTTP response time, in milliseconds. |
Overview - HAProxy Enterprise Information | HAProxy Enterprise process information, containing:
|
HTTP Requests | Description |
---|---|
HTTP Requests - Rate | Data block containing two values:
|
HTTP Requests - Total | Data block containing two values:
|
HTTP Requests - Error Rate | Data block containing two values:
|
SSL Connections | Description |
---|---|
SSL Connections - Rate | Data block containing two values:
|
SSL Connections - #Conn | Data block containing two values:
|
SSL Connections - Total | Data block containing two values:
|
TCP Connections | Description |
---|---|
TCP Connections - Rate | Data block containing two values:
|
TCP Connections - #Conn | Data block containing two values:
|
TCP Connections - Total | Data block containing two values:
|
HAProxy Enterprise Real-time Dashboard Copyright and Version | Page footer containing the version of the HAProxy Enterprise Real-time Dashboard. The most recent released version is "v1.0". |
Stats Pane
The "Stats" pane displays detailed real time information about the HAProxy Enterprise frontends and backends, and allows you to perform management actions on servers.
Filter | Description |
---|---|
Filter - Frontend/Backend Name | Filters the list and only displays frontend and backend sections whose name matches filter criteria. |
Filter - Server Name Full or partial server name | Filters the list and only displays servers (and their corresponding frontend or backend sections) whose name matches the specified filter. |
Filter - Server State List of server states | Filters the list and only displays servers (and their corresponding frontend or backend sections) whose state matches one of the selected states. Holding "Ctrl" while clicking on a particular state will deselect or select all other states for convenience. |
Filter - Action to perform | Select the action to perform on all servers visible after filtering (see Manage servers) |
Statistics | Description |
---|---|
Frontend or Backend Name | Name of the Frontend/Backend/Listen block (pxname). The checkbox left to the name selects all servers in the block for the Server Management ------ Actions at the bottom. For each server line: |
Server name | Name of the server (svname) |
Queue - Cur | Current number of requests in server's queue |
Queue - Max | Maximum value of current queued requests |
Queue - Limit | Configured maximum queue for the server |
Session Rate - Cur | Number of sessions per second over last elapsed second |
Session Rate - Max | Maximum number of new sessions per second |
Session Rate - Limit | Configured limit on new sessions per second |
Sessions - Cur | Current number of sessions |
Sessions - Max | Maximum number of sessions |
Sessions - Limit | Configured session limit |
Sessions - Total | Cumulative number of sessions |
Sessions - LbTot | Total number of times the server was selected |
Bytes - In | Cumulative bytes in to server |
Bytes - Out | Cumulative bytes out from server |
Denied - Req | Requests denied due to security concerns |
Denied - Resp | Responses denied due to security concerns |
Error - Req | Request errors |
Error - Conn | Number of requests that encountered an error while trying to connect to a backend server |
Error - Resp | Response errors |
Warnings - Retr | Number of times a connection to a server was retried |
Warnings - Redis | Number of times a request was redispatched to another server |
Server - Status | Current status and time elapsed since last UP <-> DOWN transition |
Server - LastChk | Status of last health check |
Server - Wght | Total weight (backend), or server weight (server) |
Server - Act | Number of active servers (backend) |
Server - Bck | Number of backup servers (backend |
Server - Chk | Failed Health Checks |
Server - Dwn | Number of UP -> DOWN transitions |
Server - Dwntime | Total downtime (backend) |
Server - Throttle | Current throttle percentage for the server |
Actions | Action on server (see Manage servers)
|
Manage servers
You can perform specific management tasks on selected frontends, backends and listen blocks.
Perform an action on server(s)
Select a server by clicking on the checkbox next to its name. To select all servers in a block, click the checkbox next to the block name.
Select a task from the drop-down list (see below).
Click "Apply".
Statistics | Description |
---|---|
Set state to READY | Set server state to READY (Enable Server) |
Set state to DRAIN | Set server state to DRAIN (remove from load-balancing, but remain available for health checks and persistent connections) |
Set state to MAINT | Set server state to MAINT (Disable Server) |
Health: disable checks | Mark primary server health checks as temporarily stopped |
Health: enable checks | Enable primary server health checks |
Health: force UP | Force server health to UP (regardless of pending checks) |
Health: force NOLB | Force server health to NOLB state (regardless of slow checks) |
Health: force DOWN | Force server health to DOWN (regardless of pending checks) |
Agent: disable checks | Mark auxiliary agent checks as temporarily stopped |
Agent: enable checks | Enable auxiliary agent checks |
Agent: force UP | Force server agent state to UP |
Agent: force DOWN | Force server agent state to DOWN |
Kill Sessions | Immediately terminate all server sessions |
Next up
Process Manager
