ALB5200

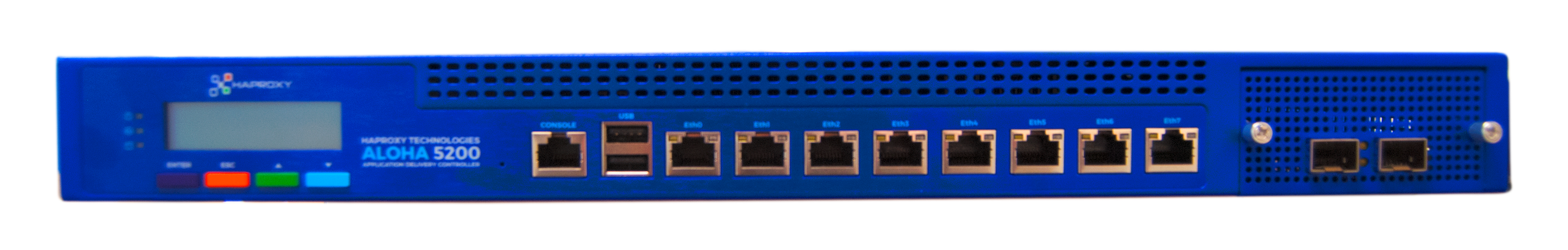

HAProxy ALOHA ALB5200 Load Balancer (Front side)

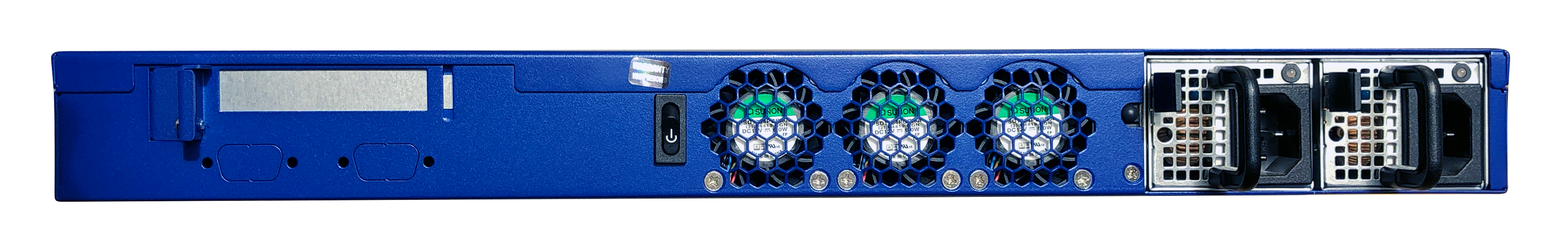

HAProxy ALOHA ALB5200 Load Balancer (Back side)
Physical Specifications
Form Factor | Value |
---|---|
Processor | i7-4790K CPU, 4th Gen IntelĀ® series processor C226 or similar |
System Memory | 16 GB |
Storage | 2 x 8 GB SATA SSD |
Networking | Ethernet: 8 x GbE RJ45, (optional) 2 x 10 GbE SFP+ Front NIC Module slot: 1 Management Port: 1 x GbE RJ45 |
I/O Interface | Reset Button: 1 Serial: 1 x Console port (RJ45 connector) USB: 2 x USB 2.0 |
Physical Dimensions | W x H x D: 438 x 44 x 415 mm Weight: 10 kg |
Power | 220W single ATX PSU 300W redundant PSU Input: AC 90~264 V @ 47~63Hz |
Approvals / Compliance | CE Class A, FCC Class A, RoHS |
Hardware Type | Rack 1U |
Benchmarks
Benchmark | Value |
---|---|
Layer 7 Max Bandwidth | 10 Gb/s |
Layer 7 Max HTTP conn/s | 64K |
Layer 7 Max Req/s (Keep-Alive) | 388K |
TLS 1.2 Max RSA-2048 key/s | 3,500 |
TLS 1.2 Max TPS | 16,000 |
TLS 1.2 Max Req/s (Keep-Alive) | 285K |
TLS 1.2 Max Bandwidth | 10 Gb/s |
Compression Max Bandwidth (input) | 6 Gb/s |
Layer 4 conn/s | 200K |
Layer 4 DSR Max conn/s | 660K |
Layer 4 NAT Max conn/s | 440K |
Packet Flood Protection Packets/s | 20 Mpps |
Packet Flood Protection Bandwidth | 10 Gb/s |
Availability and Support Roadmap
Future dates are estimates.
Milestone | Date | Description |
---|---|---|
End of Sale | Q2/2020 | After this date, if a hardware failure occurs, the failed unit will be replaced by an identical model if available. If one is not available, the entire cluster must be replaced by a newer equivalent model. |
Final Firmware Update | Q3/2023 | After this date, the model is no longer included in firmware updates, which are provided in Q1 each year. After this date, only security and critical fixes are provided for the latest existing LTS version, which are provided in Q3 each year. |
End of Support | Q3/2026 | After this date, the latest LTS version supporting the model is discontinued. The system is no longer supported. |
