ALB3200

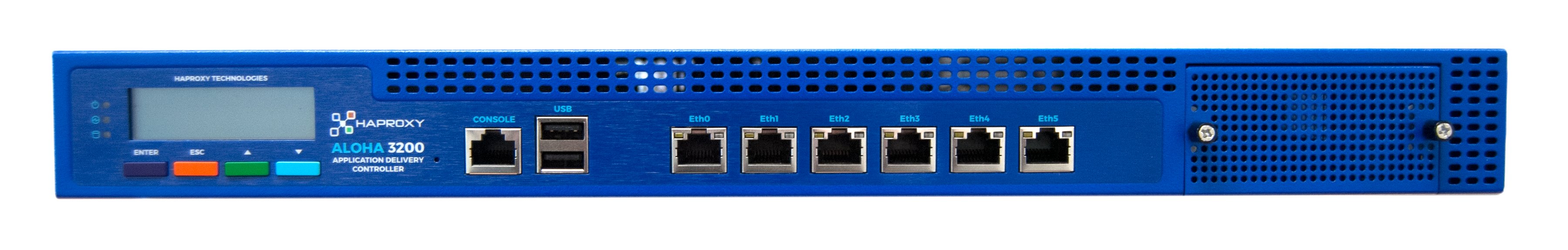

HAProxy ALOHA ALB3200 Load Balancer (Front side)

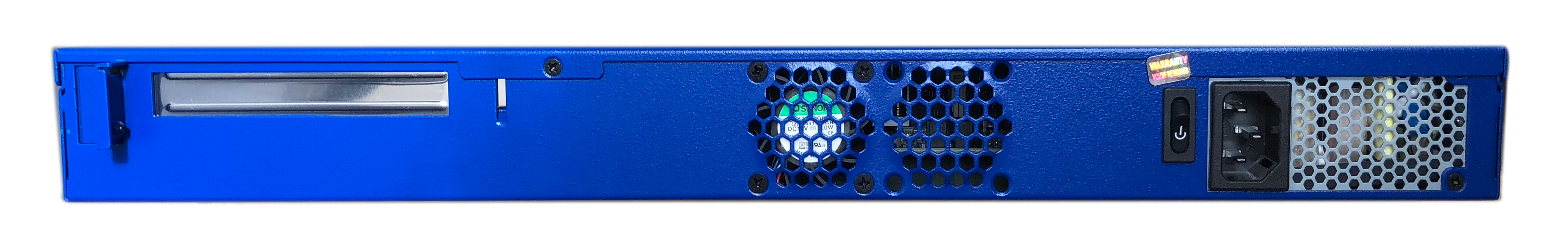

HAProxy ALOHA ALB3200 Load Balancer (Back side)
Physical Specifications
Form Factor | Value |
---|---|
Processor | Intel® Atom™ processor C2758 or similar |
System Memory | 4 GB |
Storage | HDD: 2 x 2.5" drive bays CF/SD: 1 x CF card Type II |
Networking | Ethernet: 6 x GbE RJ45 Bypass: 3 pairs Gen.3 (SKU A) Front NIC Module slot: 1 |
I/O Interface | Reset Button: 1 Serial: 1 x Console port (RJ45 connector) USB: 2 x USB 2.0 |
Physical Dimensions | W x H x D: 431 x 44 x 305 mm Weight: 4 kg |
Power | 150W ATX PSU Input: 100~240 V @50~60 Hz |
Approvals / Compliance | CE Class A, FCC Class A, UL, RoHS |
Hardware Type | Rack 1U |
Benchmarks
Benchmark | Value |
---|---|
Layer 7 Max Bandwidth | 3 Gb/s |
Layer 7 Max HTTP conn/s | 8K |
Layer 7 Max Req/s (Keep-Alive) | 40K |
TLS 1.2 Max RSA-2048 key/s | 200 |
TLS 1.2 Max TPS | 2,400 |
TLS 1.2 Max Req/s (Keep-Alive) | 20K |
TLS 1.2 Max Bandwidth | 800 Mb/s |
Compression Max Bandwidth (input) | 800 Mb/s |
Layer 4 conn/s | 40K |
Layer 4 DSR Max conn/s | 40K |
Layer 4 NAT Max conn/s | 22K |
Packet Flood Protection Packets/s | 1.4 Mpps |
Packet Flood Protection Bandwidth | 1 Gb/s |
Availability and Support Roadmap
Future dates are estimates.
Milestone | Date | Description |
---|---|---|
End of Sale | Q1/2023 | After this date, if a hardware failure occurs, the failed unit will be replaced by an identical model if available. If one is not available, the entire cluster must be replaced by a newer equivalent model. |
Final Firmware Update | Q3/2026 | After this date, the model is no longer included in firmware updates, which are provided in Q1 each year. After this date, only security and critical fixes are provided for the latest existing LTS version, which are provided in Q3 each year. |
End of Support | Q3/2029 | After this date, the latest LTS version supporting the model is discontinued. The system is no longer supported. |
