ALB5300

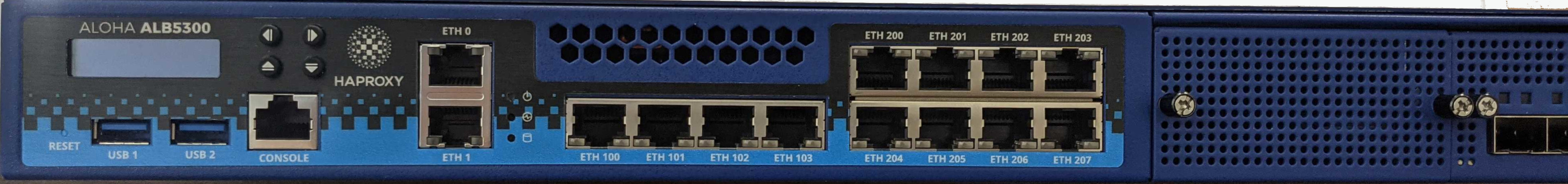

HAProxy ALOHA ALB5300 Load Balancer (Front side)

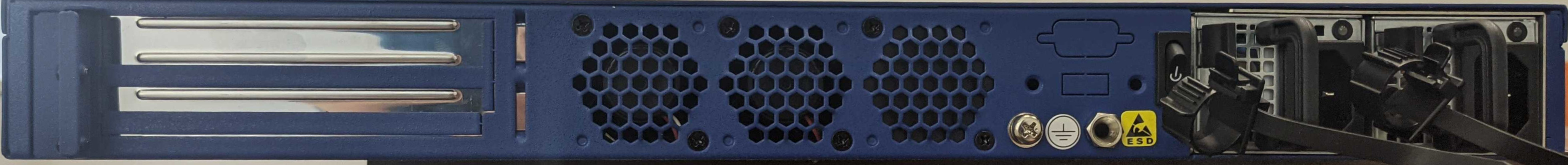

HAProxy ALOHA ALB5300 Load Balancer (Back side)
Physical Specifications
Form Factor | Value |
|---|---|
Processor | CPU: Intel(R) Core(TM) i7-8700 CPU @ 3.20GHz or similar |
BIOS | AMI SPI Flash BIOS |
System Memory | 16 GB DDR4 2666 MHz Non-ECC UDIMM |
Storage | 2 x 32 Gb SATA SSD |
Networking | Default LAN: 8 x Gbe RJ45 Intel® i210(SKU A), 4x Gbe RJ45 Intel® i350-AM4 LAN module #1: 4 x 10Gbe SFP+ Intel® xl710 LAN module #2 (optional): 2 x 40Gbe QSFP+ Intel® xl710 |
I/O Interface | Reset Button: 1 Console: 1 x RJ45 Management ports: 2 x RJ45 USB: 2 x USB 3.0 |
Cooling | Passive CPU heatsink 2 x cooling fans with smart fan control |
Environmental Parameters | Storage Temperature: -20°C to 70°C Operating Temperature: 0°C to 40°C Operating Humidity: 5% to 90% (non-condensing) |
Physical Dimensions | W x H x D: 438 mm x 500 mm x 44 mm (17.24"x 19.69"x 1.73") Weight: 7.1 kg (15.62 lbs) |
Power | 300W 1+1 ATX Redundant PSUs Input: AC Power Inlet on PSU |
Approvals / Compliance | RoHS, CE/FCC Class A, UL |
Hardware Type | Rack 1U |
