ALB5300

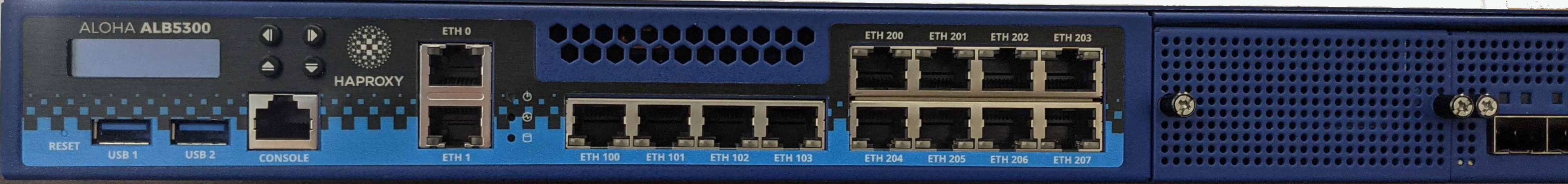

ALOHA ALB5300 Load Balancer (Front side)

ALOHA ALB5300 Load Balancer (Front side)

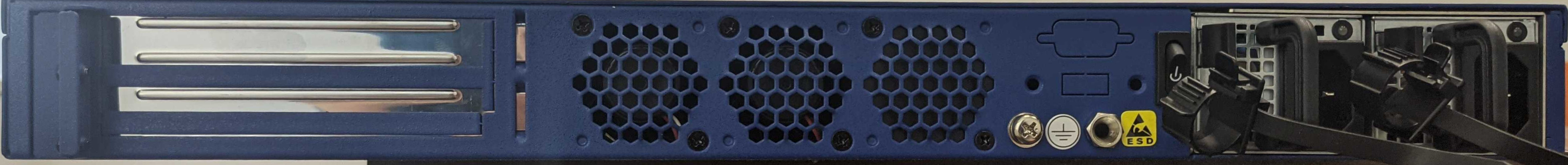

ALOHA ALB5300 Load Balancer (Back side)

ALOHA ALB5300 Load Balancer (Back side)

Physical Specifications

Form Factor

Value

Processor

CPU: Intel(R) Core(TM) i7-8700K CPU @ 3.70GHz
Chipset: Intel® C246

BIOS

AMI SPI Flash BIOS

System Memory

16 GB DDR4 2666 MHz Non-ECC UDIMM

Storage

2 x 32 Gb SATA SSD

Networking

Default LAN: 8 x Gbe RJ45 Intel® i210(SKU A), 4x Gbe RJ45 Intel® i350-AM4
LAN module #1: 4 x 10Gbe SFP+ Intel® xl710
LAN module #2 (optional): 2 x 40Gbe QSFP+ Intel® xl710

I/O Interface

Reset Button: 1
Console: 1 x RJ45
Management ports: 2 x RJ45
USB: 2 x USB 3.0

Cooling

Passive CPU heatsink
2 x cooling fans with smart fan control

Environmental Parameters

Storage Temperature: -20°C to 70°C
Operating Temperature: 0°C to 40°C
Operating Humidity: 5% to 90% (non-condensing)

Physical Dimensions

W x H x D: 438 mm x 500 mm x 44 mm (17.24"x 19.69"x 1.73")
Weight: 7.1 kg (15.62 lbs)

Power

300W 1+1 ATX Redundant PSUs
Input: AC Power Inlet on PSU

Approvals / Compliance

RoHS, CE/FCC Class A, UL

Hardware Type

Rack 1U
