ALB3200

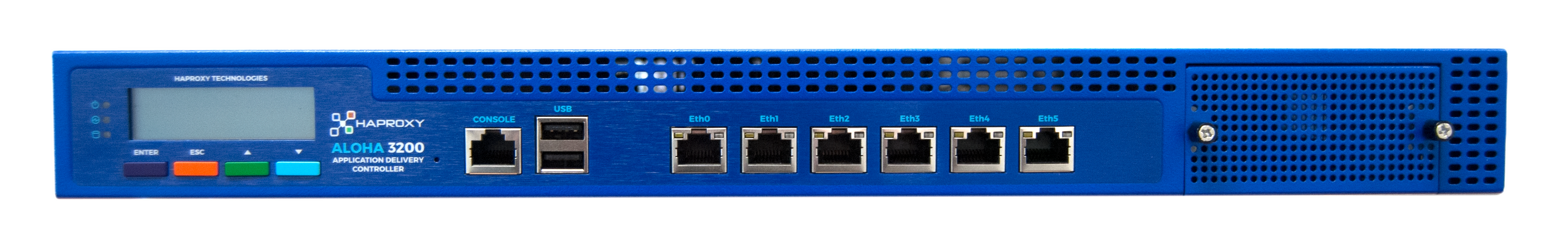

ALOHA ALB3200 Load Balancer (Front side)

ALOHA ALB3200 Load Balancer (Front side)

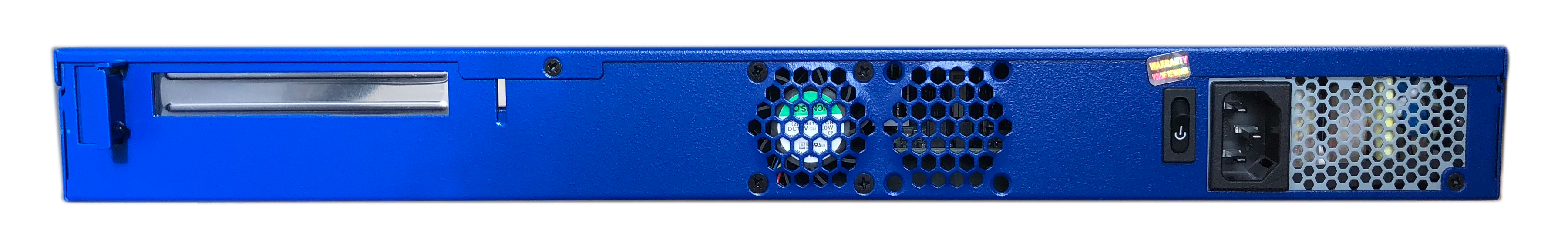

ALOHA ALB3200 Load Balancer (Back side)

ALOHA ALB3200 Load Balancer (Back side)

Physical Specifications

Form Factor

Value

Processor

Intel® AtomTM processor C2758 (8C)
or
Intel® AtomTM processor C2518 (4C)

BIOS

AMI BIOS 16Mb

System Memory

4 GB Dual-channel DDR3 1333/1600 MHz, Un-buffered, (ECC or non-ECC), 1.5V
Socket: 2 x 240-pin DIMM

Storage

HDD: 2 x 2.5" drive bays
CF/SD: 1 x CF card Type II

Networking

Ethernet Ports: 6 x GbE RJ45 onboard
Bypass: 3 pairs Gen.3 (SKU A)
Controllers: 2 x Intel i210AT, 1 x Marvell 88E1543
Front NIC Module slot: 1

I/O Interface

Reset Button: Yes
Console: 1 x RJ45
USB: 2 x USB 2.0

Expansion

PCIe at rear: Optional PCIe riser card is needed, Cannot co-exist with Front NIC module installation

Cooling

CPU heatsink
1 x cooling Fan with smart fan control

Environmental Parameters

Temperature, ambient operating / storage: 0 ~ 40º C / -20~70º C
Humidity (RH), ambient operating / ambient non-operating: 5~90%, non-condensing / 5~95%, non-condensing

Physical Dimensions

W x H x D: 431 x 44 x 305 mm
Weight: 4 kg

Power

150W ATX Power Supply Units
Input: 100~240 V @50~60 Hz

Approvals / Compliance

CE Class A, FCC Class A, UL, RoHS

Hardware Type

Rack 1U

Benchmarks

Benchmark

Value

Layer 7 Max Bandwidth

3 Gb/s

Layer 7 Max HTTP conn/s

8K

Layer 7 Max Req/s (Keep-Alive)

40K

TLS 1.2 Max RSA-2048 key/s

200

TLS 1.2 Max TPS

2,400

TLS 1.2 Max Req/s (Keep-Alive)

20K

TLS 1.2 Max Bandwidth

800 Mb/s

Compression Max Bandwidth (input)

800 Mb/s

Layer 4 conn/s

40K

Layer 4 DSR Max conn/s

40K

Layer 4 NAT Max conn/s

22K

Packet Flood Protection Packets/s

1.4 Mpps

Packet Flood Protection Bandwidth

1 Gb/s
