ALB5200

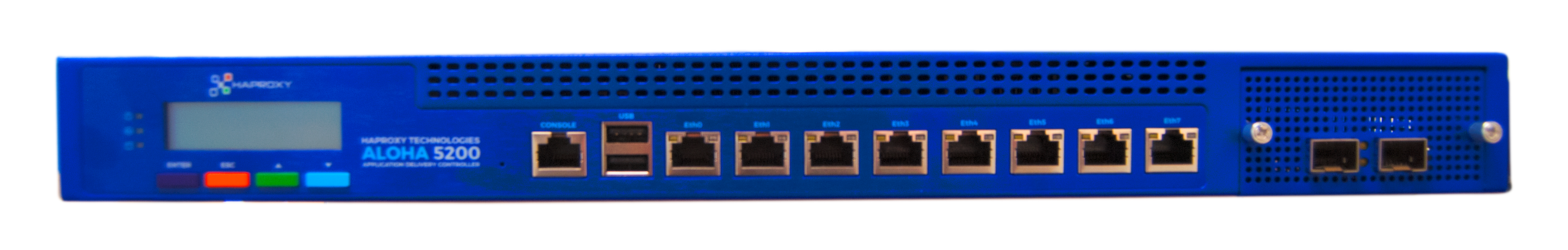

ALOHA ALB5200 Load Balancer (Front side)

ALOHA ALB5200 Load Balancer (Front side)

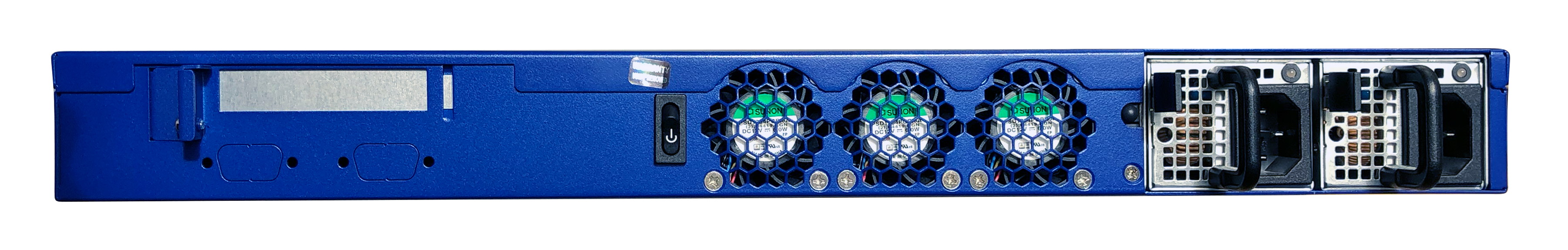

ALOHA ALB5200 Load Balancer (Back side)

ALOHA ALB5200 Load Balancer (Back side)

Physical Specifications

Form Factor

Value

Processor

i7-4790K CPU @ 4.00Ghz, 4th Gen Intel® series processor C226

BIOS

AMI BIOS 64Mb

System Memory

16 GB Dual-channel DDR3/DDR3L 1066/1333/1600 Mhz, un-buffered, ECC or non-ECC, 1.5V/1.35V
Socket: 2 x 240-pin DIMM

Storage

HDD: 2 x 2.5" HDD/SDD kit (reserved 1 x 3.5")
CF/SD: 1 x CF card Type II

Networking

Ethernet Ports: 8 x GbE RJ45 onboard, Maximum up to 16 ports
Bypass: 3 pairs Gen.3 (optional)
Controllers: 1 x Intel i217, 7 x Intel i210AT
Front NIC Module slot: 1
Management Port: 1 x GbE RJ45

I/O Interface

Reset Button: 1
Console: 1 x RJ45
USB: 2 x USB 2.0
IPMI via OPMA slot: By Project

Expansion

1 x PCIe x 8 expansion for NIC module, 1 x low-profile PCIe*8 (optional)

Cooling

CPU heatsink with fan duct
3 x cooling fan with smart fan control

Environmental Parameters

Temperature, ambient operating / storage: 0 ~ 40º C / -20~70º C
Humidity (RH), ambient operating / ambient non-operating: 5~90%, non-condensing / 5~95%, non-condensing

Physical Dimensions

W x H x D: 438 x 44 x 415 mm
Weight: 10 kg

Power

FW-8759A: 220W single ATX PSU
FW-8759C: 300W redundant PSUs
Input: AC 90~264 V @ 47~63Hz

Approvals / Compliance

CE Class A, FCC Class A, RoHS

Hardware Type

Rack 1U

Benchmarks

Benchmark

Value

Layer 7 Max Bandwidth

10 Gb/s

Layer 7 Max HTTP conn/s

64K

Layer 7 Max Req/s (Keep-Alive)

388K

TLS 1.2 Max RSA-2048 key/s

3,500

TLS 1.2 Max TPS

16,000

TLS 1.2 Max Req/s (Keep-Alive)

285K

TLS 1.2 Max Bandwidth

10 Gb/s

Compression Max Bandwidth (input)

6 Gb/s

Layer 4 conn/s

200K

Layer 4 DSR Max conn/s

660K

Layer 4 NAT Max conn/s

440K

Packet Flood Protection Packets/s

20 Mpps

Packet Flood Protection Bandwidth

10 Gb/s
