HAProxy Enterprise Documentation 2.0r1

AWS EC2 Service Discovery

The HAProxy Data Plane API scales your HAProxy Enterprise configuration to dynamically fit the current capacity of your pool of EC2 instances.

The HAProxy Data Plane API:

  • Regularly polls the AWS EC2 API.

  • Automatically creates HAProxy Enterprise backends.

  • Populates your HAProxy Enterprise backends with the addresses of your EC2 instances.

  • Minimizes reloads during scaling events thanks to the HAProxy Runtime API.

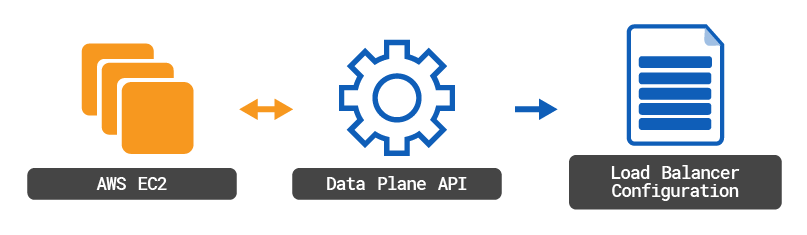

https://cdn.haproxy.com/documentation/hapee/2-0r1/assets/aws-ec2-service-discovery-228a9f2985a39db84627896fa32935cf25de0174b2f0766bcd51446f66f2d741.png

See also

Add resource tags to your EC2 instances

Add the following resource tags to:

  • EC2 instances, or

  • an AWS Auto Scaling Group launch template.

The HAProxy Enterprise Data Plane API will discover tagged instances and populate a backend section with their IP addresses.

The instances may have been created either individually or from a launch template.

Tag

Description

Requisiteness

Example value

HAProxy:Service:Name

A custom service name.

Mandatory

MyApp

HAProxy:Service:Port

Port number that you want HAProxy Enterprise to send traffic to.

Mandatory

80

HAProxy:Instance:Port

Overrides the service port for a single instance

Optional

8080

For example, in a launch template:

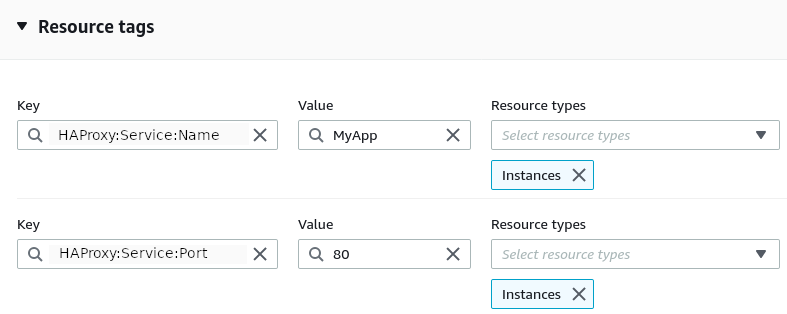

https://cdn.haproxy.com/documentation/hapee/2-0r1/assets/aws-launch-template-resource-tags-a84dabbb3fe207c8f491c07a7a2d32534b1ad34964d7ffec134c5a10d87e88a4.png

See also

Enable Service Discovery on HAProxy Enterprise

To enable service discovery, install and configure the HAProxy Data Plane API, and restart HAProxy Enterprise.

  1. Add a section such as the following to the /etc/hapee-extras/dataplane-api.hcl configuration file.

    service_discovery {
      aws_regions = [
        {
          AccessKeyID                = "KAB[...]2X6"
          Description                = "Production environment"
          Enabled                    = true
          IPV4Address                = "private"
          Name                       = "my-disc"
          Region                     = "eu-west-3"
          RetryTimeout               = 10
          SecretAccessKey            = "qjT[...]uXV"
          ServerSlotsBase            = 10
          ServerSlotsGrowthIncrement = 0
          ServerSlotsGrowthType      = "exponential"
        },
      ]
    }

    Note

    Alternatively, you can run a curl command with JSON directives such as the following:

    $ curl -H 'Content-Type: application/json' -u admin:adminpwd -d '{
    "access_key_id":"KAB[...]2X6",
    "description":"Production environment",
    "enabled":true,
    "ipv4_address":"private",
    "name":"my-disc",
    "region":"eu-west-3",
    "secret_access_key":"qjT[...]uXV",
    "retry_timeout":10}' http://127.0.0.1:5555/v2/service_discovery/aws

    This command sends configuration and authentication data to the Data Plane API's AWS service discovery endpoint. Upon successful registration, it returns a JSON result and populates the /etc/hapee-extras/dataplane-api.hcl configuration.

    In this example, as we do not specify values for the server_slots_base, server_slots_growth_increment, and server_slots_growth_type directives, default values will be used.

    HCL configuration directive

    JSON directive

    Description

    AccessKeyID

    access_key_id

    AWS Access Key ID

    Description

    description

    Service discovery description

    Enabled

    enabled

    true or false.

    If set to false:

    • The Data Plane API will not update server sections in discovered backend sections.

    • Data can become outdated if:

      • newer EC2 instances launch, or

      • if an existing instance reboots with a new IPv4 address.

    IPV4Address

    ipv4_address

    private (for the private network, reachable inside the AWS VPC) or public.

    Name

    name

    Service discovery name

    Region

    region

    AWS region

    RetryTimeout

    retry_timeout

    Interval of time in seconds between the reconciliation and the following.

    SecretAccessKey

    secret_access_key

    AWS Secret Access Key

    ServerSlotsBase

    server_slots_base

    The minimum amount of server entries per backend section.

    Defaults to 10.

    ServerSlotsGrowthIncrement

    server_slots_growth_increment

    The number of additional slots that are allocated for server entries if there are additional entries.

    Defaults to 0.

    ServerSlotsGrowthType

    server_slots_growth_type

    Function type to implement when the number of server slots increases: exponential or linear.

    Defaults to exponential.

    Note

    If the EC2 instance where the Data Plane API is running has an IAM Role attached (as AmazonEC2ReadOnlyAccess), you do not need to specify credentials.

  2. Restart HAProxy Enterprise:

    $ sudo systemctl restart hapee-2.0-lb
  3. Check the /etc/hapee-2.0/hapee-lb.cfg file.

    A new backend section displays.

    The name of the new backend comprises the following parts:

    aws-<AWS region>-<Service discovery name>-<HAProxy:Service:Name tag value>-<HAProxy:Service:Port tag value>

    backend aws-eu-west-3-my-disc-MyApp-80
      server SRV_ONGQw 172.31.14.35:80 check weight 128
      server SRV_5hi3l 127.0.0.1:80 disabled weight 128
      server SRV_L2rw7 127.0.0.1:80 disabled weight 128
      server SRV_pG3MX 127.0.0.1:80 disabled weight 128
      server SRV_9WFsc 127.0.0.1:80 disabled weight 128
      server SRV_o2UU2 127.0.0.1:80 disabled weight 128
      server SRV_GMuw1 127.0.0.1:80 disabled weight 128
      server SRV_3Id36 127.0.0.1:80 disabled weight 128
      server SRV_6Ivld 127.0.0.1:80 disabled weight 128
      server SRV_jYF88 127.0.0.1:80 disabled weight 128

    This backend may only have several servers enabled out of the total number of servers specified by the ServerSlotsBase directive.

    When you register more instances of the same service, HAProxy Enterprise fills in disabled server slots. You can thus scale up or down without a reload, in most cases.

  4. Edit the new backend as needed.

    For example, you can specify a load-balancing algorithm.

  5. Configure a frontend section that routes traffic to this backend pool of servers.

See also
