Single sign-on (Kerberos)

On this page

Kerberos is an authentication protocol. It is the default authentication protocol in Windows. The Single Sign-On (SSO) module integrates with Kerberos to let users to sign in to an HTTP application with Windows Active Directory credentials. Kerberos doesn’t typically go over HTTP, but an extension to the HTTP protocol, RFC 4559, adds a way to negotiate the protocol via the Www-Authenticate and Authorization HTTP headers. Then Kerberos tickets (identity tokens) are exchanged over the network by wrapping them inside Simple and Protected Negotiate (SPNEGO) tokens, defined by RFC 4178.

HAProxy Enterprise, being in front of the HTTP applications for which you want to enable single sign-on, validates the user’s Kerberos ticket and grants them access. Therefore, the applications themselves do not need to implement Kerberos directly.

To implement single sign-on using Kerberos, we will complete the following steps:

  1. Configure Windows Server.
  2. Configure HAProxy Enterprise.
  3. Configure the user’s PC.

Configure Windows Server Jump to heading

In this section, you will configure Windows Server for Kerberos authentication.

Prerequisites Jump to heading

On Windows Server, please check that the following prerequisites have been met:

  • You’ve installed the Active Directory Domain Services role.
  • You’ve promoted the Windows Server instance to be a domain controller. A domain controller is a Windows Server where you administer Active Directory.
  • You’ve created an Active Directory domain. In this guide, we will use the domain example.com.
  • You’ve installed the DNS Server role.

Create a user account and SPN Jump to heading

With Kerberos, every service gets a unique Service Principal Name (SPN). An SPN identifies a service running on a host. Because HAProxy Enterprise will act as a proxy in front of the applications, we will assign the SPNs to it. In Windows Server, we will create a user account in Active Directory to represent the load balancer and then assign to it an SPN for each load balanced web app. It might seem odd to assign a user account to a load balancer, but this is simply where we will map which services the load balancer can accept authorization requests for. By doing this, we are able to generate a keytab file, which we will store on the load balancer. When a user accesses the service via the load balancer, they present a ticket that the load balancer must decrypt with its keytab to prove that it is authorized by Active Directory.

  1. Log in to your AD domain controller.

  2. Open PowerShell and create a new user with the New-ADUser command. Note that the backtick is the word-wrap operator, allowing you to split the command onto multiple lines. Change the password used in the example:

    powershell
    New-ADUser `
      -Name loadbalancer1 `
      -Description "Load balancer 1 service account" `
      -AccountPassword (ConvertTo-SecureString "P@ssword1" -AsPlainText -Force) `
      -PasswordNeverExpires $true `
      -KerberosEncryptionType AES256 `
      -Enabled $true
    powershell
    New-ADUser `
      -Name loadbalancer1 `
      -Description "Load balancer 1 service account" `
      -AccountPassword (ConvertTo-SecureString "P@ssword1" -AsPlainText -Force) `
      -PasswordNeverExpires $true `
      -KerberosEncryptionType AES256 `
      -Enabled $true

  3. Create a keytab file for the account by calling the ktpass command from PowerShell. The command does two things:

    • Maps the Service Principal Name HTTP/webapp.example.com@EXAMPLE.COM to the AD user account example\loadbalancer1. The load balancer is then authorized to proxy requests for the service webapp.example.com.
    • Generates a keytab file at C:\loadbalancer1.keytab, which contains the service’s key. After you’ve copied this file to the load balancer, the load balancer will be able to decrypt tickets.
    powershell
    ktpass /out C:\loadbalancer1.keytab /princ HTTP/webapp.example.com@EXAMPLE.COM /mapUser example\loadbalancer1 /crypto AES256-SHA1 /pType KRB5_NT_PRINCIPAL /pass +rndPass
    powershell
    ktpass /out C:\loadbalancer1.keytab /princ HTTP/webapp.example.com@EXAMPLE.COM /mapUser example\loadbalancer1 /crypto AES256-SHA1 /pType KRB5_NT_PRINCIPAL /pass +rndPass
    output
    text
    Targeting domain controller: windowsserver.example.com
    Using legacy password setting method
    Successfully mapped HTTP/webapp.example.com to loadbalancer1.
    Key created.
    Output keytab to C:\loadbalancer1.keytab
    Keytab version: 0x502
    keysize 90 HTTP/webapp.example.com@EXAMPLE.COM ptype 1 (KRB5_NT_PRINCIPAL) vno 3 etype 0x12 (AES256-SHA1) keylength 32
    output
    text
    Targeting domain controller: windowsserver.example.com
    Using legacy password setting method
    Successfully mapped HTTP/webapp.example.com to loadbalancer1.
    Key created.
    Output keytab to C:\loadbalancer1.keytab
    Keytab version: 0x502
    keysize 90 HTTP/webapp.example.com@EXAMPLE.COM ptype 1 (KRB5_NT_PRINCIPAL) vno 3 etype 0x12 (AES256-SHA1) keylength 32

    In this example:

    Field Description
    /out The keytab to produce.
    /princ The principal name (HTTP/FQDN@REALM).
    /mapUser Maps the principal to the given user account.
    /crypto The cryptosystem to use. AES256-SHA1 means AES256-CTS-HMAC-SHA1-96.
    /pType The principal type. KRB5_NT_PRINCIPAL is the general, recommended ptype.
    /pass Sets the password.
    +rndPass Generates a random password.

    View the Service Principal Name

    To view a user account’s Service Principal Name:

    1. Open Server Manager and go to Tools > Active Directory Users and Computers.
    2. In the Active Directory Users and Computers window, open the View menu and enable Advanced Features.
    3. Expand your domain, select Users, and then double-click the user to view its properties. In our example, we created a user named loadbalancer1.
    4. On the user’s properties, select the Attribute Editor tab.
    5. Scroll to the servicePrincipalName to see its value. In our example, the value is HTTP/webapp.example.com.

Add a DNS record Jump to heading

Add a DNS record for your web app, pointed at your load balancer.

  1. On your AD domain controller, go to Server Manager > Tools > DNS.

  2. Expand Forward Lookup Zones in the tree, right-click on your domain (for example, example.com) and select New Host (A or AAAA).

  3. On the New Host dialog, set the name. For example, webapp.

  4. Set the IP address. For example, use your load balancer’s IP address.

  5. Click Add Host.

    You should see a dialog that says “The host record was successfully created”.

Optional: Disable NTLM Jump to heading

By disabling NTLM altogether you can make your network safer and eliminate the chance that the user’s browser and Windows Server will try to use it.

NTLM is an older and less secure protocol than Kerberos that runs in some Windows Active Directory domains. To authenticate with Kerberos over HTTP, the user’s web browser will exchange a series of messages with Windows Server to negotiate which authentication protocol to use. This is how the Www-Authenticate: Negotiate HTTP header works. Though after this negotiation, the client and server may try to use NTLM instead of Kerberos.

To disable NTLM:

  1. On your AD domain controller, go to Server Manager > Tools > Group Policy Management.
  2. Expand your forest and the domains folder in the Group Policy Management tree.
  3. If you do not yet have a group policy object, right-click on your domain and choose Create a GPO in this domain, and Link it here. Assign the new GPO a name.
  4. Expand your domain, right-click your new policy object, and choose Edit. The Group Policy Management Editor appears.
  5. Under Computer Configuration > Policies > Windows Settings > Security Settings > Local Policies > Security Options, double click the setting named Network security: Restrict NTLM: NTLM authentication in this domain. Set its value to Disable.
  6. Optional: To speed up propagation of the new setting, on the target PC joined to the domain run PowerShell as an administrator and execute the command gpupdate /force.

Configure HAProxy Enterprise Jump to heading

In this section, you will configure HAProxy Enterprise for Kerberos authentication.

Install and configure the module Jump to heading

  1. Install the SSO module according to your platform:

    nix
    sudo apt-get install hapee-extras-spoa-sso
    nix
    sudo apt-get install hapee-extras-spoa-sso
    nix
    sudo yum install hapee-extras-spoa-sso
    nix
    sudo yum install hapee-extras-spoa-sso
    nix
    sudo zypper install hapee-extras-spoa-sso
    nix
    sudo zypper install hapee-extras-spoa-sso
    nix
    sudo pkg install hapee-extras-spoa-sso
    nix
    sudo pkg install hapee-extras-spoa-sso

    It installs the following files:

    File Description
    /opt/hapee-extras/bin/hapee-krb-srv Defines the SSO Kerberos service program.
    /etc/hapee-extras/hapee-krb-srv-spoe.cfg Defines how the load balancer passes data via the Stream Processing Offload Protocol to the SSO Kerberos service. Typically, you will not need to edit this file.
    /etc/hapee-extras/hapee-krb-srv.cfg Gives an example portion of an HAProxy Enterprise load balancer configuration that you can copy-paste.
    /etc/hapee-extras/hapee-sso-spoe.cfg Not used in this setup.
    /etc/hapee-extras/hapee-sso.cfg Not used in this setup.
    /etc/hapee-extras/sample/krb-srv.ini Sets the location of your keytab file for each application.
    /etc/hapee-extras/sample/krb-srv.map Maps HTTP Host headers to applications.
    /etc/hapee-extras/sample/sso.ini Not used in this setup.
    /etc/hapee-extras/sample/sso.map Not used in this setup.
    /etc/default/hapee-extras-sso Defines the default settings for the hapee-extras-spoa-krb-srv service. The file sets the KRBSRV_OPTIONS environment variable.

  2. Copy the keytab file from Windows Server to the load balancer. For example, save it as /etc/hapee-extras/keytabs/loadbalancer1.keytab.

    nix
    sudo mkdir -p /etc/hapee-extras/keytabs
    sudo cp ~/loadbalancer1.keytab /etc/hapee-extras/keytabs/
    nix
    sudo mkdir -p /etc/hapee-extras/keytabs
    sudo cp ~/loadbalancer1.keytab /etc/hapee-extras/keytabs/

  3. Copy the files krb-srv.ini and krb-srv.map from the sample directory to /etc/hapee-extras:

    nix
    sudo cp /etc/hapee-extras/sample/krb-srv.* /etc/hapee-extras/
    nix
    sudo cp /etc/hapee-extras/sample/krb-srv.* /etc/hapee-extras/

  4. Edit /etc/hapee-extras/krb-srv.ini. Add a domain section for your application and set the path to the keytab file. Also add an application section that references the domain section.

    krb-srv.ini
    ini
    [domain:webapp.example.com]
    krb_keytab_file = /etc/hapee-extras/keytabs/loadbalancer1.keytab
    [webapp]
    domain = webapp.example.com
    krb-srv.ini
    ini
    [domain:webapp.example.com]
    krb_keytab_file = /etc/hapee-extras/keytabs/loadbalancer1.keytab
    [webapp]
    domain = webapp.example.com

  5. Edit /etc/hapee-extras/krb-srv.map. Add a line that maps the HTTP Host header that you expect with the domain and app.

    krb-srv.map
    text
    # Host header        # doman / app
    webapp.example.com   webapp.example.com/webapp
    krb-srv.map
    text
    # Host header        # doman / app
    webapp.example.com   webapp.example.com/webapp

  6. Edit your main load balancer configuration file, /etc/hapee-2.8/hapee-lb.cfg.

    • Add the SSO Kerberos lines to the frontend for which you want to enable single sign-on:

      hapee-lb.cfg
      haproxy
      frontend www
        bind :80
        default_backend servers

        #--------------------------------
        # SSO Kerberos section
        #--------------------------------
        #option http-buffer-request
        filter spoe engine spoe_krb_srv config /etc/hapee-extras/hapee-krb-srv-spoe.cfg

        # HTTP REQUEST
        # set sso_app and sso_domain variables before calling the SPOA
        http-request set-var(txn.sso_domain) req.hdr(Host),map(/etc/hapee-extras/krb-srv.map),word(1,'/')
        http-request set-var(txn.sso_app)    req.hdr(Host),map(/etc/hapee-extras/krb-srv.map),word(2,'/')

        # set sess.sso_cookie variable with the cookie set by the browser
        http-request set-var(sess.sso_cookie) req.cook(sso_cookie) if { req.cook(sso_cookie) -m found }

        # We expect to find an authorization header even if an sso_cookie exists
        http-request return status 401 hdr www-authenticate Negotiate unless { req.hdr(authorization) -m found }
        http-request send-spoe-group spoe_krb_srv grp-sso-check-token
        http-request deny if { var(txn.sso.action) -m str dny }
        http-request deny if ! { var(txn.sso.action) -m str alw frm }

        # The agent can extract a display name from a validated Kerberos token
        http-request del-header X-SSO-LOGIN
        http-request set-header X-SSO-LOGIN %[var(txn.sso.sso_login)] if { var(txn.sso.sso_login) -m found }

        # If the SPOA has set txn.sso.www_authenticate or sess.sso.sso_set_cookie variables, we set the header accordingly
        http-response add-header Set-Cookie sso_cookie=%[var(sess.sso.sso_set_cookie)];\ path=/;\ domain=%[var(sess.sso.sso_set_cookie_domain)]; if { var(sess.sso.sso_set_cookie) -m found }
        http-response add-header www-authenticate %[var(txn.sso.www_authenticate)] if { var(txn.sso.www_authenticate) -m found }

        # BACKENDS
        default_backend sso_err
        use_backend sso_err                 if { var(txn.sso.action) -m str err } # we got an error from the SPOA
        use_backend %[var(txn.sso.backend)] if { var(txn.sso.action) -m str alw } { var(txn.sso.backend) -m found }
      hapee-lb.cfg
      haproxy
      frontend www
        bind :80
        default_backend servers

        #--------------------------------
        # SSO Kerberos section
        #--------------------------------
        #option http-buffer-request
        filter spoe engine spoe_krb_srv config /etc/hapee-extras/hapee-krb-srv-spoe.cfg

        # HTTP REQUEST
        # set sso_app and sso_domain variables before calling the SPOA
        http-request set-var(txn.sso_domain) req.hdr(Host),map(/etc/hapee-extras/krb-srv.map),word(1,'/')
        http-request set-var(txn.sso_app)    req.hdr(Host),map(/etc/hapee-extras/krb-srv.map),word(2,'/')

        # set sess.sso_cookie variable with the cookie set by the browser
        http-request set-var(sess.sso_cookie) req.cook(sso_cookie) if { req.cook(sso_cookie) -m found }

        # We expect to find an authorization header even if an sso_cookie exists
        http-request return status 401 hdr www-authenticate Negotiate unless { req.hdr(authorization) -m found }
        http-request send-spoe-group spoe_krb_srv grp-sso-check-token
        http-request deny if { var(txn.sso.action) -m str dny }
        http-request deny if ! { var(txn.sso.action) -m str alw frm }

        # The agent can extract a display name from a validated Kerberos token
        http-request del-header X-SSO-LOGIN
        http-request set-header X-SSO-LOGIN %[var(txn.sso.sso_login)] if { var(txn.sso.sso_login) -m found }

        # If the SPOA has set txn.sso.www_authenticate or sess.sso.sso_set_cookie variables, we set the header accordingly
        http-response add-header Set-Cookie sso_cookie=%[var(sess.sso.sso_set_cookie)];\ path=/;\ domain=%[var(sess.sso.sso_set_cookie_domain)]; if { var(sess.sso.sso_set_cookie) -m found }
        http-response add-header www-authenticate %[var(txn.sso.www_authenticate)] if { var(txn.sso.www_authenticate) -m found }

        # BACKENDS
        default_backend sso_err
        use_backend sso_err                 if { var(txn.sso.action) -m str err } # we got an error from the SPOA
        use_backend %[var(txn.sso.backend)] if { var(txn.sso.action) -m str alw } { var(txn.sso.backend) -m found }

    • Ensure that the name of the backend for your application matches the name of the application section in krb-srv.ini. In our example, krb-srv.ini contained [webapp], so we would name the backend webapp:

      hapee-lb.cfg
      haproxy
      backend webapp
        balance roundrobin
        server web1 127.0.0.1:3000 check
      hapee-lb.cfg
      haproxy
      backend webapp
        balance roundrobin
        server web1 127.0.0.1:3000 check

    • Add the following two backend sections:

      hapee-lb.cfg
      haproxy
      backend sso_err
        mode http
      backend spoa-backend
        mode tcp
        timeout server 1m
        server sso-daemon 127.0.0.1:12345 inter 1s check
      hapee-lb.cfg
      haproxy
      backend sso_err
        mode http
      backend spoa-backend
        mode tcp
        timeout server 1m
        server sso-daemon 127.0.0.1:12345 inter 1s check

  7. Reload the load balancer:

    nix
    sudo systemctl reload hapee-2.8-lb
    nix
    sudo systemctl reload hapee-2.8-lb

  8. Enable and start the service:

    nix
    sudo systemctl enable hapee-extras-spoa-krb-srv
    sudo systemctl start hapee-extras-spoa-krb-srv
    nix
    sudo systemctl enable hapee-extras-spoa-krb-srv
    sudo systemctl start hapee-extras-spoa-krb-srv

  9. The service’s status should indicate that it is now configured for the new application.

    nix
    sudo systemctl status hapee-extras-spoa-krb-srv
    nix
    sudo systemctl status hapee-extras-spoa-krb-srv
    output
    text
    hapee systemd[1]: Starting hapee-extras-spoa-krb-srv.service - HAPEE SPOA-KRB-SRV: HAPEE SSO solution...
    hapee hapee-krb-srv[4955]: [00] Configured domains:
    hapee hapee-krb-srv[4955]: 1713465556.954921 [00] Configured domains:
    hapee hapee-krb-srv[4955]: 1713465556.954951 [00] domain:webapp.example.com (1 app)
    hapee hapee-krb-srv[4955]: [00] domain:webapp.example.com (1 app)
    hapee hapee-krb-srv[4956]: 1713465556.956454 [00] SSO Server will start in background, pid=4956
    hapee hapee-krb-srv[4956]: [00] SSO Server will start in background, pid=4956
    hapee systemd[1]: Started hapee-extras-spoa-krb-srv.service - HAPEE SPOA-KRB-SRV: HAPEE SSO solution.
    hapee HAProxy-sso[4956]: [00] SSO server is ready and listening on port 12345
    output
    text
    hapee systemd[1]: Starting hapee-extras-spoa-krb-srv.service - HAPEE SPOA-KRB-SRV: HAPEE SSO solution...
    hapee hapee-krb-srv[4955]: [00] Configured domains:
    hapee hapee-krb-srv[4955]: 1713465556.954921 [00] Configured domains:
    hapee hapee-krb-srv[4955]: 1713465556.954951 [00] domain:webapp.example.com (1 app)
    hapee hapee-krb-srv[4955]: [00] domain:webapp.example.com (1 app)
    hapee hapee-krb-srv[4956]: 1713465556.956454 [00] SSO Server will start in background, pid=4956
    hapee hapee-krb-srv[4956]: [00] SSO Server will start in background, pid=4956
    hapee systemd[1]: Started hapee-extras-spoa-krb-srv.service - HAPEE SPOA-KRB-SRV: HAPEE SSO solution.
    hapee HAProxy-sso[4956]: [00] SSO server is ready and listening on port 12345

Optional: Add a second application Jump to heading

To add another application to SSO:

  1. On your Windows Server, add a DNS record for the new application.

    • On your AD domain controller, go to Server Manager > Tools > DNS.
    • Expand Forward Lookup Zones in the tree, right-click on your domain (for example, example.com) and select New Host (A or AAAA).
    • On the New Host dialog, set the name. For example, webapp2.
    • Set the IP address. For example, use your load balancer’s IP address.
    • Click Add Host.

  2. To add more SPNs to the user account to support other web applications, use the /in argument when calling ktpass to append new SPNs:

    powershell
    ktpass /in C:\loadbalancer1.keytab /out C:\loadbalancer1.keytab /princ HTTP/webapp2.example.com@EXAMPLE.COM /mapUser example\loadbalancer1 /crypto AES256-SHA1 /pType KRB5_NT_PRINCIPAL /pass +rndPass
    powershell
    ktpass /in C:\loadbalancer1.keytab /out C:\loadbalancer1.keytab /princ HTTP/webapp2.example.com@EXAMPLE.COM /mapUser example\loadbalancer1 /crypto AES256-SHA1 /pType KRB5_NT_PRINCIPAL /pass +rndPass
    output
    text
    Existing keytab:
    keytab version: 0x502
    keysize 90 HTTP/webapp.example.com@EXAMPLE.COM pType 1 (KRB5_NT_PRINCIPAL) vno 3 etype 0x12 (AES256-SHA1) keylength 32
    Targeting domain controller: windowsserver.example.com
    Using legacy password setting method
    Successfully mapped HTTP/webapp2.example.com to loadbalancer1.
    Key created.
    Output keytab to C:\loadbalancer1.keytab:
    Keytab version: 0x502
    keysize 90 HTTP/webapp.example.com@EXAMPLE.COM ptype1 (KRB5_NT_PRINCIPAL) vno 3 etype 0x12 (AES256-SHA1) keylength 32
    keysize 91 HTTP/webapp2.example.com@EXAMPLE.COM ptype1 (KRB5_NT_PRINCIPAL) vno 3 etype 0x12 (AES256-SHA1) keylength 32
    output
    text
    Existing keytab:
    keytab version: 0x502
    keysize 90 HTTP/webapp.example.com@EXAMPLE.COM pType 1 (KRB5_NT_PRINCIPAL) vno 3 etype 0x12 (AES256-SHA1) keylength 32
    Targeting domain controller: windowsserver.example.com
    Using legacy password setting method
    Successfully mapped HTTP/webapp2.example.com to loadbalancer1.
    Key created.
    Output keytab to C:\loadbalancer1.keytab:
    Keytab version: 0x502
    keysize 90 HTTP/webapp.example.com@EXAMPLE.COM ptype1 (KRB5_NT_PRINCIPAL) vno 3 etype 0x12 (AES256-SHA1) keylength 32
    keysize 91 HTTP/webapp2.example.com@EXAMPLE.COM ptype1 (KRB5_NT_PRINCIPAL) vno 3 etype 0x12 (AES256-SHA1) keylength 32

  3. Copy the keytab file to the load balancer.

  4. Edit /etc/hapee-extras/krb-srv.ini. Add a domain section for your application and set the path to the keytab file. Also add an application section that references the domain section.

    krb-srv.ini
    ini
    [domain:webapp.example.com]
    krb_keytab_file = /etc/hapee-extras/keytabs/loadbalancer1.keytab
    [webapp]
    domain = webapp.example.com
    [domain:webapp2.example.com]
    krb_keytab_file = /etc/hapee-extras/keytabs/loadbalancer1.keytab
    [webapp2]
    domain = webapp2.example.com
    krb-srv.ini
    ini
    [domain:webapp.example.com]
    krb_keytab_file = /etc/hapee-extras/keytabs/loadbalancer1.keytab
    [webapp]
    domain = webapp.example.com
    [domain:webapp2.example.com]
    krb_keytab_file = /etc/hapee-extras/keytabs/loadbalancer1.keytab
    [webapp2]
    domain = webapp2.example.com

  5. Edit /etc/hapee-extras/krb-srv.map. Add a line that maps the HTTP Host header that you expect with the domain and app.

    krb-srv.map
    text
    # Host header        # doman / app
    webapp.example.com   webapp.example.com/webapp
    webapp2.example.com  webapp2.example.com/webapp2
    krb-srv.map
    text
    # Host header        # doman / app
    webapp.example.com   webapp.example.com/webapp
    webapp2.example.com  webapp2.example.com/webapp2

  6. Restart the SSO Kerberos service:

    nix
    sudo systemctl restart hapee-extras-spoa-krb-srv
    nix
    sudo systemctl restart hapee-extras-spoa-krb-srv

    The service’s status should indicate that it is now configured for the new application.

    nix
    sudo systemctl status hapee-extras-spoa-krb-srv
    nix
    sudo systemctl status hapee-extras-spoa-krb-srv
    output
    text
    hapee hapee-krb-srv[6283]: 1713397718.771858 [00] Configured domains:
    hapee hapee-krb-srv[6283]: 1713397718.771899 [00] domain:webapp.example.com (1 app)
    hapee hapee-krb-srv[6283]: 1713397718.771905 [00] domain:webapp2.example.com (1 app)
    output
    text
    hapee hapee-krb-srv[6283]: 1713397718.771858 [00] Configured domains:
    hapee hapee-krb-srv[6283]: 1713397718.771899 [00] domain:webapp.example.com (1 app)
    hapee hapee-krb-srv[6283]: 1713397718.771905 [00] domain:webapp2.example.com (1 app)

  7. Edit your main load balancer configuration file, /etc/hapee-2.8/hapee-lb.cfg. Ensure that the name of the backend for your application matches the name of the application section in krb-srv.ini. For example, webapp2:

    hapee-lb.cfg
    haproxy
    backend webapp2
      balance roundrobin
      server web1 127.0.0.1:3001 check
    hapee-lb.cfg
    haproxy
    backend webapp2
      balance roundrobin
      server web1 127.0.0.1:3001 check

  8. Reload the load balancer:

    nix
    sudo systemctl reload hapee-2.8-lb
    nix
    sudo systemctl reload hapee-2.8-lb

Configure user PCs Jump to heading

In this section, you will configure users’ Windows PCs for Kerberos authentication.

Update DNS and AD settings Jump to heading

To allow single sign-on in the AD domain, update the user’s PC to use the domain’s DNS server and, optionally, join the computer to the domain.

  1. Update the user’s preferred DNS server to point to Windows Server. That way, they can access internal subdomains like webapp.example.com. On the user’s PC:

    • On the Desktop, click the Start button, type Control Panel, and then press enter.

    • Navigate to Network and Internet, and then Network and Sharing Center.

    • Click Change adapter settings.

    • Right-click on your adapter (for example, Ethernet) and select Properties.

    • On the adapter’s Properties dialog, double-click Internet Protocol Version 4 (TCP/IPv4) to open the protocol’s properties.

    • Click Advanced, then select the DNS tab.

    • Under DNS server addresses, click Add, then enter the IP address of your Windows Server. Click Add.

    • Click OK to save the change.

    • To verify, open PowerShell and use nslookup to retrieve the IP address for your AD domain controller server. For example:

      powershell
      nslookup windowsserver.example.com
      powershell
      nslookup windowsserver.example.com
      output
      text
      Name: windowsserver.example.com
      Addresses: 192.168.56.60
      output
      text
      Name: windowsserver.example.com
      Addresses: 192.168.56.60

  2. Optional: Join the computer to the Active Directory domain.

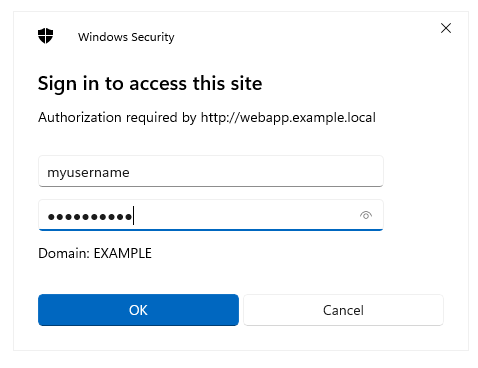

When the user accesses the web application, for example webapp.example.com, through their browser, they will see a login prompt. They can enter their Active Directory credentials.

SSO Kerberos login prompt

Optional: Integrated authentication Jump to heading

To skip the login prompt and instead enable Microsoft Edge to use the credentials of the logged-in Windows user, enable integrated authentication. This allows the browser to use the credentials from the Windows operating system and skip being prompted. You will set this as a Group Policy so that it applies to all computers joined to the Active Directory domain.

  1. On the Active Directory domain controller, go to the Microsoft Edge website and click the link Download Windows 64-bit Policy to download the archive. Extract the contents of the archive.
  2. In Windows Explorer, navigate to the policies directory for your domain. For example, for the domain example.com, it would be C:\Windows\SYSVOL\sysvol\example.com\Policies. From there, create a directory named PolicyDefinitions.
  3. From the extracted archive, copy the contents of the MicrosoftEdgePolicyTemplates\windows\admx directory into the new PolicyDefinitions directory.
  4. Open Server Manager and go to Tools > Group Policy Management. Expand your forest and domain in the Group Policy Management tree.
  5. If you do not yet have a group policy object, right-click on your domain and choose Create a GPO in this domain, and Link it here. Assign the new GPO a name.
  6. Expand your domain, right-click your new policy object, and choose Edit. The Group Policy Management Editor appears.
  7. Under Computer Configuration > Policies > Administrative Templates, expand the new Microsoft Edge policy definition in the Group Policy Management Editor.
  8. Within HTTP Authentication, edit the setting named Configure list of allowed authentication servers, enable it, and set its value to your load balanced application. For example, webapp.example.com or *.example.com.
  9. Optional: If the setting Supported authentication schemes has been configured, then be sure its value includes negotiate.

To verify that the policy has been rolled out:

  1. On the user’s PC, run PowerShell and execute gpupdate /force.
  2. Open Microsoft Edge and go to edge://policy to see the applied policies. You should see the policy named AuthServerAllowlist set to your target hostname.

Do you have any suggestions on how we can improve the content of this page?

Previous page Single sign-on Next page SAML
© 2024 HAProxy Technologies, LLC. All Rights Reserved
Manage Cookie Preferences
