Introduction to SPDY / HTTP-bis

SPDY is a protocol designed by google which aims to fix HTTP/1.1 protocol weaknesses and to adapt this 14 years old protocol to today’s internet devices and requirements.
Back in 1999, when HTTP/1.1 was designed, there was no mobile devices, the web pages were composed by HTML with a few images, almost no javascript and no CSS. The ISP delivered internet over very slow connections.
HTTP/2.0 has to address today’s and tomorrow’s need when much more devices can browse the internet from very different type of connections (very slow with high packet loss or very fast ones) and more and more people want multimedia content and interactivity. Websites became “web applications”.

SPDY is not HTTP 2.0! But HTTP 2.0 will use SPDY as basement

Note that as long as HTTP/2.0 has not been released officially, ALL articles written on SPDY, NPN, ALPN, etc may be outdated at some point.
Sadly, this is true for the present article, BUT I’ll try to keep it up to date 🙂
As an example, NPN is a TLS extension that has been designed to allow a client and a server to negotiate the protocol which will be used at the above network layer (in our case this is application layer).
Well, this NPN TLS extension is going to be outdated soon by an official RFC called “Transport Layer Security (TLS) Application Layer Protocol Negotiation Extension” (shortened to ALPN).

Also, we’re already at the third version of SPDY protocol (3.1 to be accurate). It changes quite often.

HAProxy and SPDY

As Willy explained on HAProxy‘s mailing list, HAProxy won’t implement SPDY.
But, as soon as HTTP/2.0 will be released officially, then the development will focus on it.
Main driver for this is the problem seen in introduction: waste of time because the drafts are updated quite often.

Saying that, HAProxy can be used to:
* load-balance SPDY web servers
* detect SPDY protocol through NPN (or more recent ALPN) TLS extension

Diagram

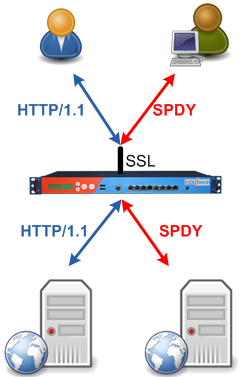

The picture below shows how HAProxy can be used to detect and split HTTP and SPDY traffic over an HTTPs connection:
spdy

Basically, HAProxy uses the NPN (and later the ALPN) TLS extension to figure out whether the client can browse the website using SPDY. If yes, the connection is forwarded to the SPDY farm (here hosted on nginx), otherwise, the connection is forwarded to the HTTP server farm (here hosted on nginx too).

Configuration

HAProxy configuration example for NPN and SPDY


Below, the HAProxy configuration to detect and split HTTP and SPDY traffic to two different farms:
[sourcecode language=”text”]
defaults
mode tcp
log global
option tcplog
timeout connect 4s
timeout server 300s
timeout client 300s

frontend ft_spdy
bind 64.210.140.163:443 name https ssl crt STAR_haproxylab_net.pem npn spdy/2

# tcp log format + SSL information (TLS version, cipher in use, SNI, NPN)
log-format %ci:%cp [%t] %ft %b/%s %Tw/%Tc/%Tt %B %tsc %ac/%fc/%bc/%sc/%rc %sq/%bq {%sslv/%sslc/%[ssl_fc_sni]/%[ssl_fc_npn]}

# acls: npn
acl npn_spdy ssl_fc_npn -i spdy/2

# spdy redirection
use_backend bk_spdy if npn_spdy

default_backend bk_http

backend bk_spdy
option httpchk HEAD /healthcheck
server nginx 127.0.0.1:8082 maxconn 100 check port 8081

backend bk_http
option httpchk HEAD /healthcheck
http-request set-header Spdy no
server nginx 127.0.0.1:8081 maxconn 100 check
[/sourcecode]

NGINX configuration example for SPDY


And the corresponding nginx configuration:
Note that I use a LUA script to check if the “Spdy: no” HTTP header is present.
  * if present: then the connection was made over HTTP in HAProxy
  * if not present, then the connection was made over SPDY
[sourcecode language=”text”]
server {
listen 127.0.0.1:8081;
listen 127.0.0.1:8082 spdy;
root /var/www/htdocs/spdy/;

location = /healthcheck {
access_log off;
return 200;
}

location / {
default_type ‘text/plain’;
content_by_lua ‘
local c = ngx.req.get_headers()["Spdy"];
if c then
ngx.say("Currently browsing over HTTP")
else
ngx.say("Currently browsing over spdy")
end
return
‘;
}

}
[/sourcecode]

Testing


This setup is in production.
Simply browse https://spdy.haproxylab.net/ to give it a try.

Related links

  • SPDY whitepaper: http://www.chromium.org/spdy/spdy-whitepaper
  • SPDY (official ???) page: http://www.chromium.org/spdy
  • IETF Transport Layer Security (TLS) Application Layer Protocol Negotiation Extension: http://tools.ietf.org/html/draft-friedl-tls-applayerprotoneg-02
  • IETF HTTP/1.1 RFC: http://www.ietf.org/rfc/rfc2616.txt
